Repair Procedures: Replacement
CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.
- Disconnect the negative (-) battery terminal.

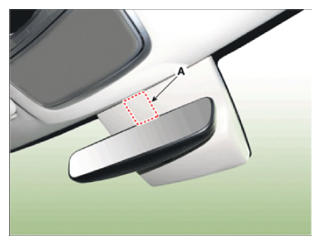

- Remove the inside rear view mirror cover (A).
- Remove the rain sensor cover (A).

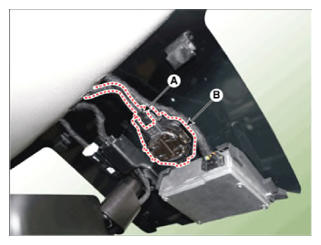

- Disconnect the photo sensor connector (A) and then remove the photo sensor (B).
- Install in the reverse order of removal.
CAUTION:
- Replace any damaged clips (or retainers or fasteners).
