Repair Procedures: Replacement

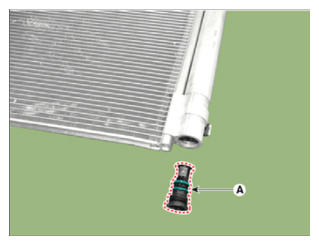

1. Remove the cap (A) on the bottom of the condenser with an L wrench.

   Courtesy of HYUNDAI MOTOR AMERICA

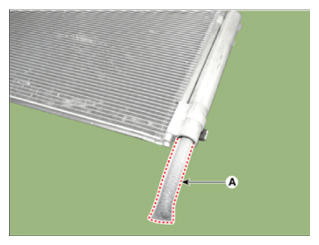

2. Remove the receiver-drier (A) from condenser using a long nose plier. Check for crumbled receiver-drier and clogged bottom cap filter.

   Courtesy of HYUNDAI MOTOR AMERICA

3. Install in the reverse order of removal.

NOTE:

• Always replace the receiver-drier and bottom cap at the same time.

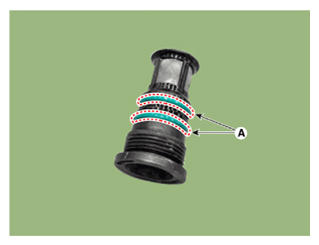

• Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the right O-rings for R-134a or R-1234yf to avoid leakage.
• Be careful not to damage the radiator and condenser fins when installing the condenser.
• Charge the system, and test its performance.

Courtesy of HYUNDAI MOTOR AMERICA
