Repair Procedures: Replacement
- Disconnect the negative (-) battery terminal.
- Remove the main crash pad assembly.
(Refer to Body (Interior and Exterior) - "MAIN CRASH PAD ASSEMBLY ")

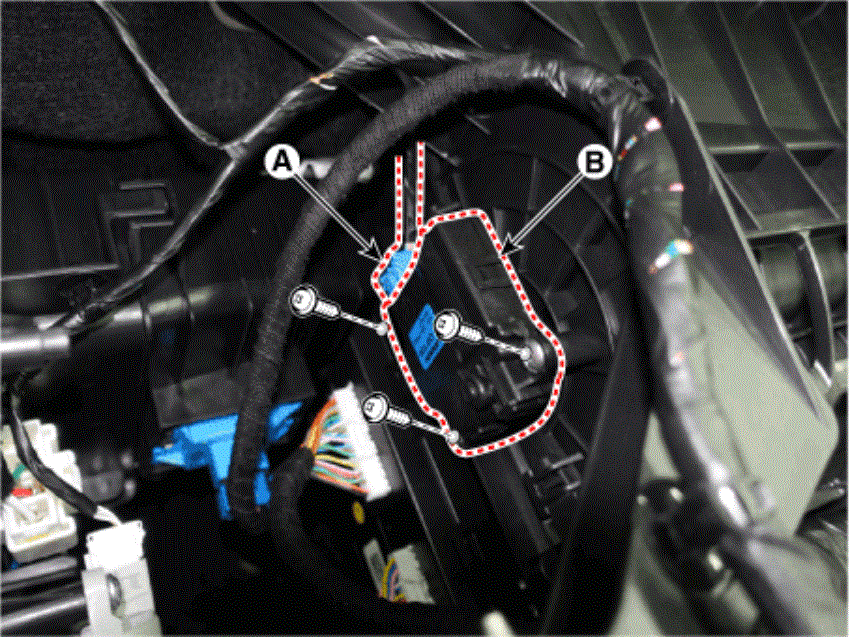

- Disconnect the intake actuator connector (A), loosen the mounting screws and remove the intake actuator (B).
- Install in the reverse order of removal.
