Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.WARNING:
- Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
- Remove the front seat assembly.
(Refer to Body (Interior and Exterior) - "FRONT SEAT ASSEMBLY ")
- Remove the seat back cover.
(Refer to Body (Interior and Exterior) - "FRONT SEAT BACK COVER ")
NOTE:- When the front side airbag has deployed after a collision, replace the seat back as an assembly.

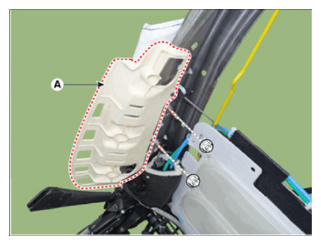

- Loosen the CSAB mounting nuts and remove the CSAB module (A).
