Occupant Classification System Diagnosis
›
DTC B1764-00: OCS MAT Defect
›
Troubleshooting
›
Diagnostic Flowchart
Diagnostic Flowchart

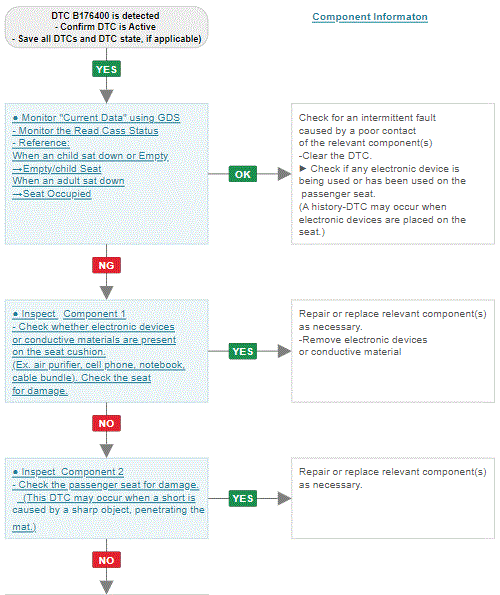

Fig 1: 1 Of 2
Courtesy of HYUNDAI MOTOR AMERICA

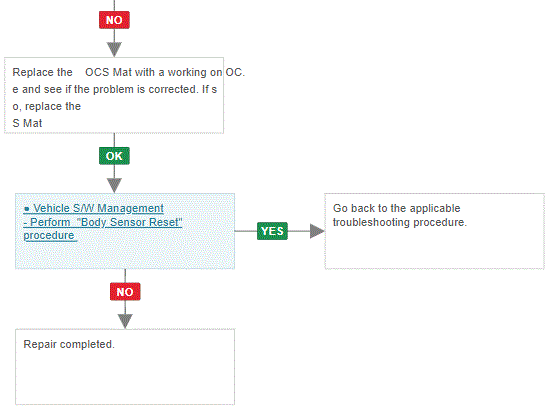

Fig 2: 2 Of 2
Courtesy of HYUNDAI MOTOR AMERICA
