Repair Procedures: Installation

Disconnect the negative (-) battery terminal.
WARNING:
- Disconnect the battery negative cable, and wait for at least three minutes before beginning work.

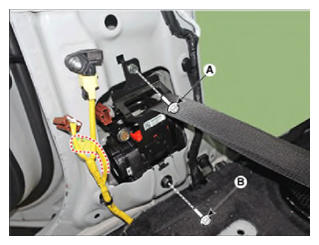

Install the front seat belt pretensioner.
Tightening torque:

Bolt A: 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

Bolt B: 39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

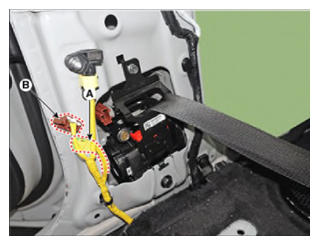

Connect the BPT connector (A) and PSB connector (B).

Courtesy of HYUNDAI MOTOR AMERICA

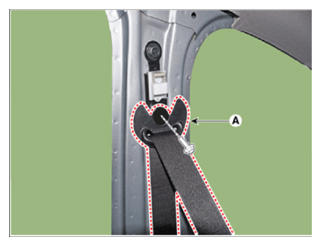

Install the front seat belt upper anchor (A) bolt.
Tightening torque:

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install the center pillar trim.
(Refer to Body - "CENTER PILLAR TRIM ")
Install the door scuff trim.
(Refer to Body - "DOOR SCUFF TRIM ")
Reconnect the negative (-) battery terminal.
After installing the seat belt pretensioner, confirm proper system operation.
NOTE:
- Turn the ignition switch ON; the SRS indicator light should be turned on for about 6 seconds and then go off.
