Repair Procedures: Removal

Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.

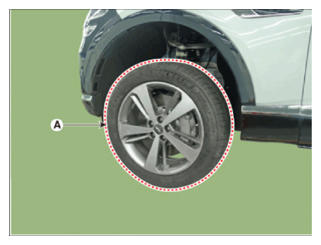

Remove the front wheel and tire (A) from front hub.

Tightening torque:

137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)

NOTE:

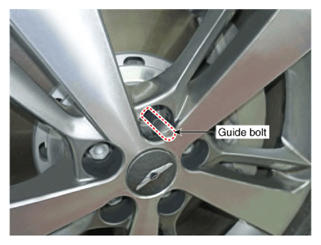

Safely remove the wheel and tire (A) using the guide bolt included in the Tire Mobility Kit (TMK).

Courtesy of HYUNDAI MOTOR AMERICA

Be careful not to damage the hub bolts when removing the front wheel and tire (A).

Courtesy of HYUNDAI MOTOR AMERICA

Remove the front strut assembly.
(Refer to Suspension System - "FRONT STRUT ASSEMBLY ")

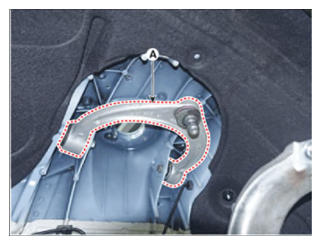

Loosen the mounting bolt and then remove the upper arm (A).
Tightening torque:

127.5 - 147.1 N.m (13.0 - 15.0 kgf.m, 94.0 - 108.5 lb-ft)
NOTE:
- Do not reuse the mounting bolt.
Courtesy of HYUNDAI MOTOR AMERICA
