Body G-sensor: Rear

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
    CAUTION:
    • Wait at least 30 seconds after separating the cable.
  2. Loosen the wheel nuts slightly.

    Raise the vehicle, and make sure it is securely supported.

  3. Remove the rear wheel and tire (A) from rear hub.

    Tightening torque:

    137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)

    NOTE:

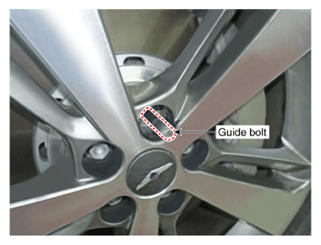

    • Safely remove the wheel and tire (A) using the guide bolt included in the Tire Mobility Kit (TMK).
      G14722612Courtesy of HYUNDAI MOTOR AMERICA

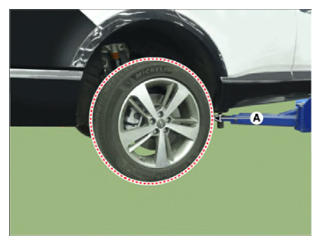

    • Be careful not to damage the hub bolts when removing the rear wheel and tire (A).
    G14722613Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the Rear wheel guard.

    (Refer to Body - "REAR WHEEL GUARD ")

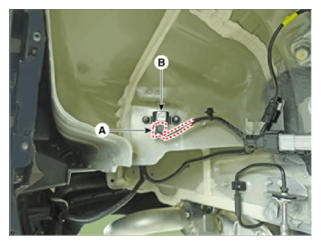

  5. Disconnect the ECS-G sensor connector (A).
  6. Loosen the nut and then remove the ECS-G sensor (B).

    Tightening torque:

    3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

    [Rear Right]

    G14722614Courtesy of HYUNDAI MOTOR AMERICA
