Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
    CAUTION:
    • Wait at least 30 seconds after separating the cable.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

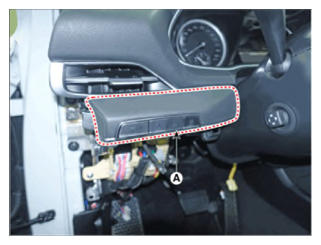

  3. Remove the switch assembly (A) after loosening the screw.
    G14723099Courtesy of HYUNDAI MOTOR AMERICA

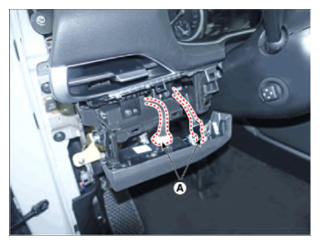

  4. Disconnect the connector (A) and then remove the switch assembly.
    G14723100Courtesy of HYUNDAI MOTOR AMERICA

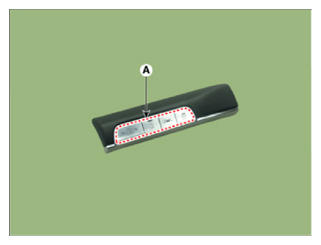

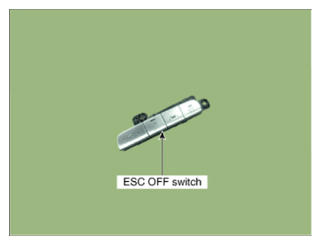

  5. Remove the ESC OFF switch after loosening the screw.
    G14723101Courtesy of HYUNDAI MOTOR AMERICA
    G14723102Courtesy of HYUNDAI MOTOR AMERICA
