Repair Procedures: Inspection

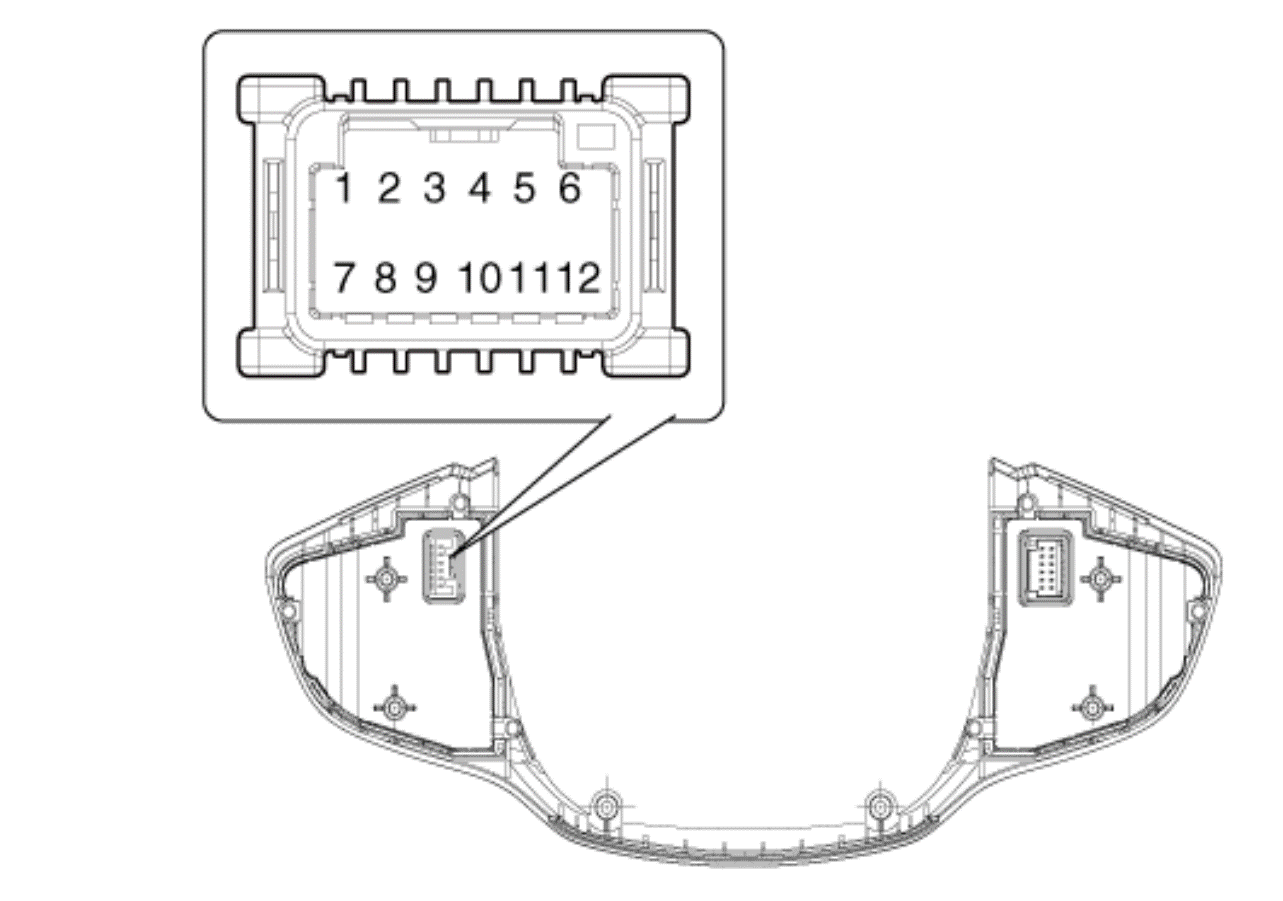

  1. Check for resistance between terminals in each switch position.
G15586620Courtesy of HYUNDAI MOTOR AMERICA
Function switch Terminal Resistance Ω
CANCEL 3 - 4 390Ω
SET - 3 - 4 610Ω
RES + 3 - 4 910Ω
CRUISE 3 - 4 1.38 kΩ
