Repair Procedures: Inspection

  1. Remove the trunk inner switch.
  2. Check for continuity between terminals of the trunk inner switch.

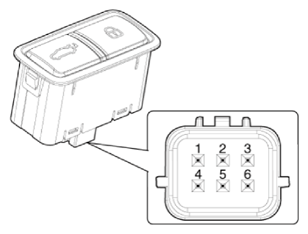

    G15590103Courtesy of HYUNDAI MOTOR AMERICA

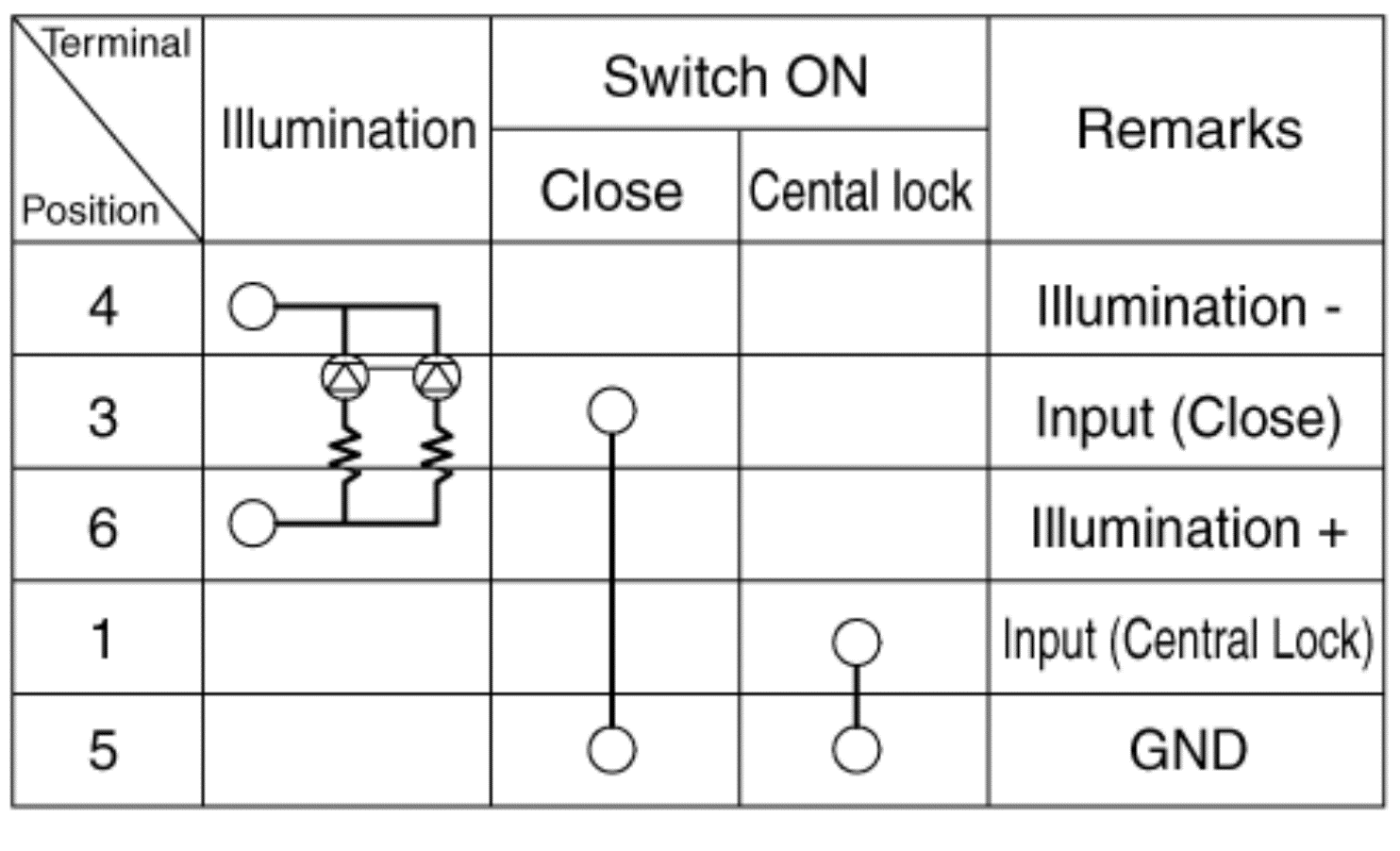

    G15590104Courtesy of HYUNDAI MOTOR AMERICA
