Repair Procedures: Removal
- Turn the ignition switch OFF.

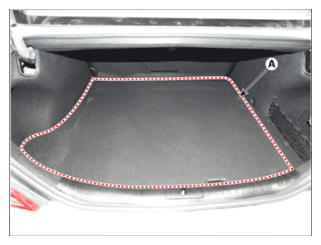

- Remove the luggage covering (A).

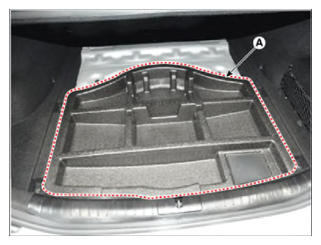

- Remove the luggage center tray (A).

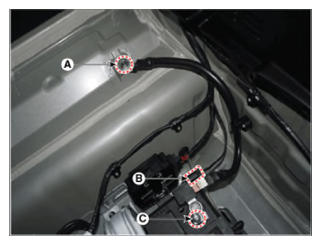

- Disconnect the battery negative (-) terminal (A).
- Disconnect the battery sensor connector (B).
- Remove the battery sensor by loosening the mounting bolts (C).
