Balance Shaft Module (BSM)

(Refer to Lubrication System - "OIL PAN ")

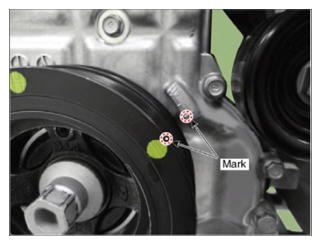

1. Turn the crankshaft damper pulley and align its groove with the timing mark "T" of the timing chain cover.

   Courtesy of HYUNDAI MOTOR AMERICA

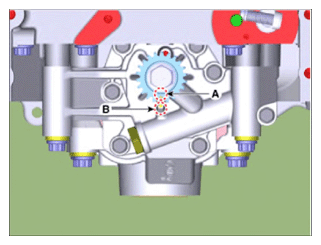

2. Confirm that the BSM sprocket timing mark (A) is visually aligned with center of adjacent cast timing notch (B).

   [Front]

   Courtesy of HYUNDAI MOTOR AMERICA

   [Rear]

   Courtesy of HYUNDAI MOTOR AMERICA

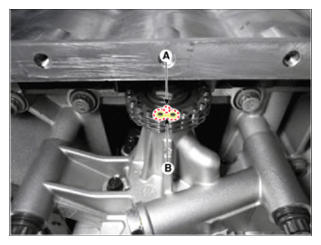

3. Put a mark on the timing chain (A) corresponding to the timing mark (B) of the sprocket.

   Courtesy of HYUNDAI MOTOR AMERICA

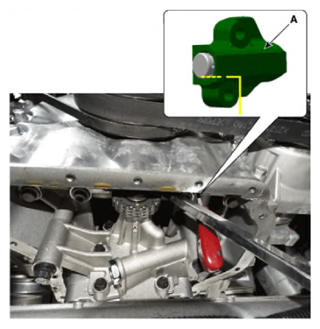

4. Insert a stopper pin (A) into the hole on the tensioner after compressing the balance shaft chain tensioner piston.

   Courtesy of HYUNDAI MOTOR AMERICA

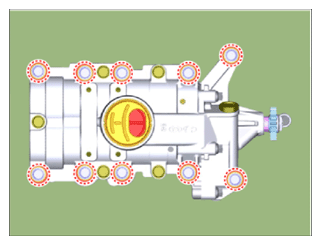

5. Remove the balance shaft module (BSM) mounting bolts.

   Courtesy of HYUNDAI MOTOR AMERICA

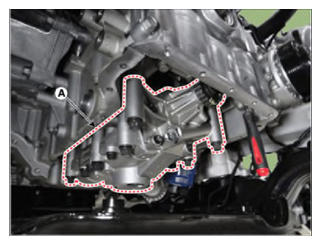

6. Remove the balance shaft module (BSM) (A) while taking off the chain from the sprocket.

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

   • Do not disassemble the balance shaft module (BSM).
