Home › Genesis › 2022 › G70 2.0T, AWD › Repair and Diagnosis › Engine Mechanical › Mechanical › Timing System - 2.0L › Components & Components Location › Components

Components & Components Location: Components

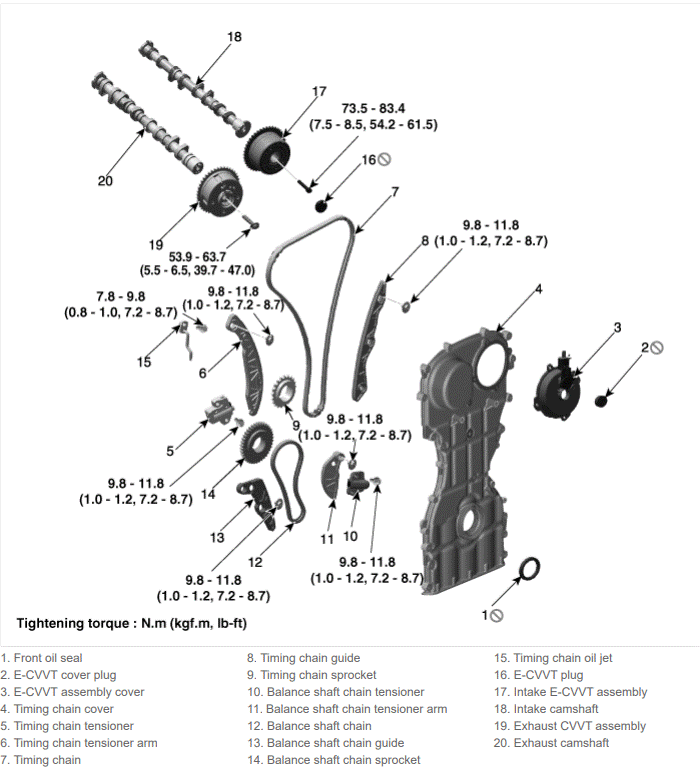

Fig 1: Timing System Components Location With Torque Specification
G15586104Courtesy of HYUNDAI MOTOR AMERICA
