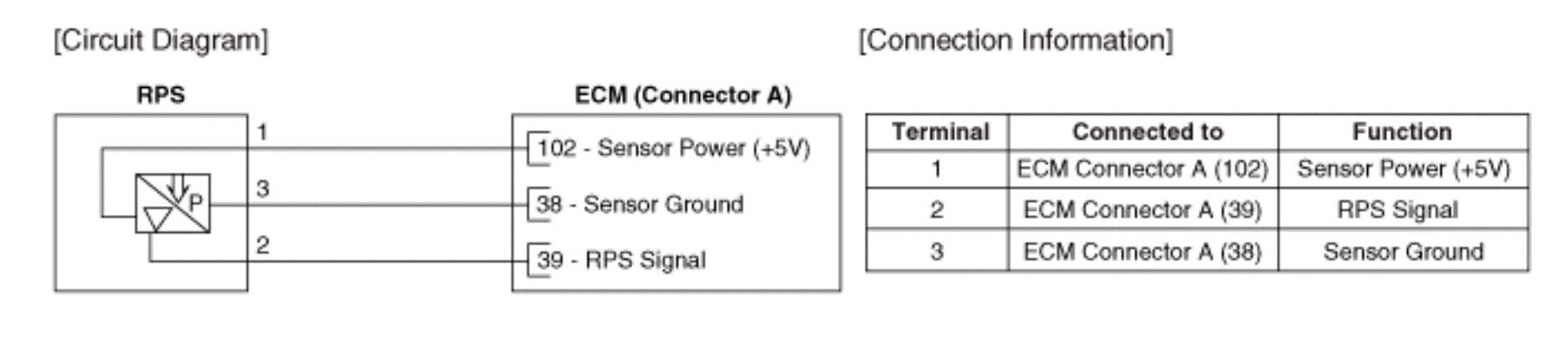

Home › Genesis › 2022 › G70 2.0T, AWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.0L › Rail Pressure Sensor (RPS) › Schematic Diagrams › Circuit Diagram › Notes
