G70 2.0T, RWD
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Power Trunk Module
›
Power Latch Assembly
›

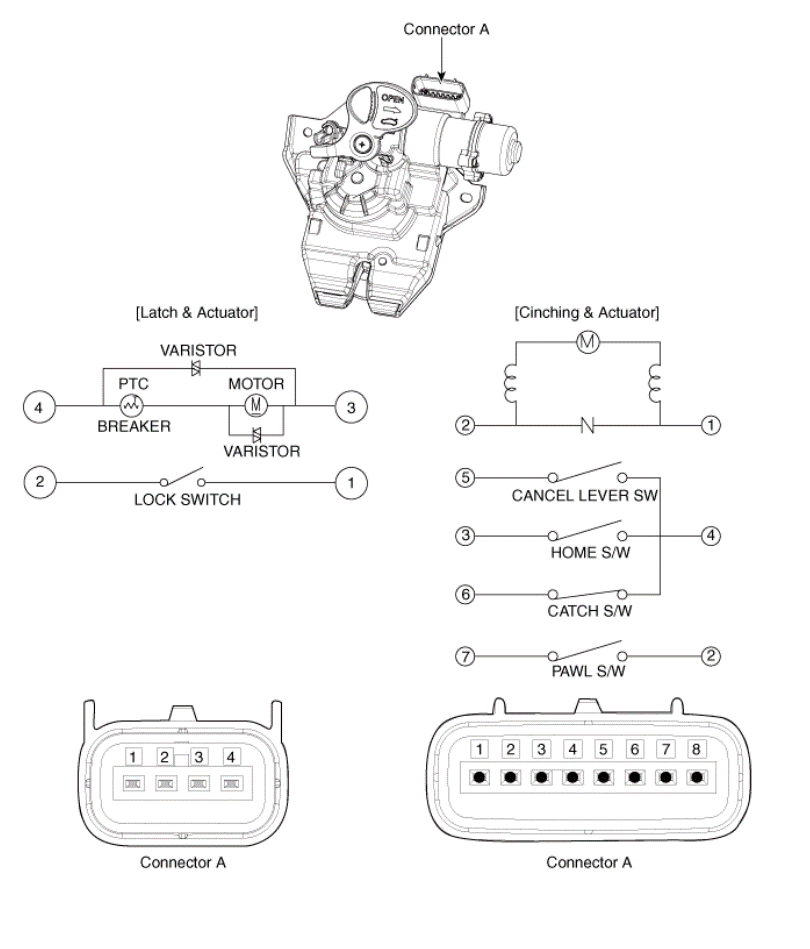

Connector And Terminal Information
Connector And Terminal Information
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
