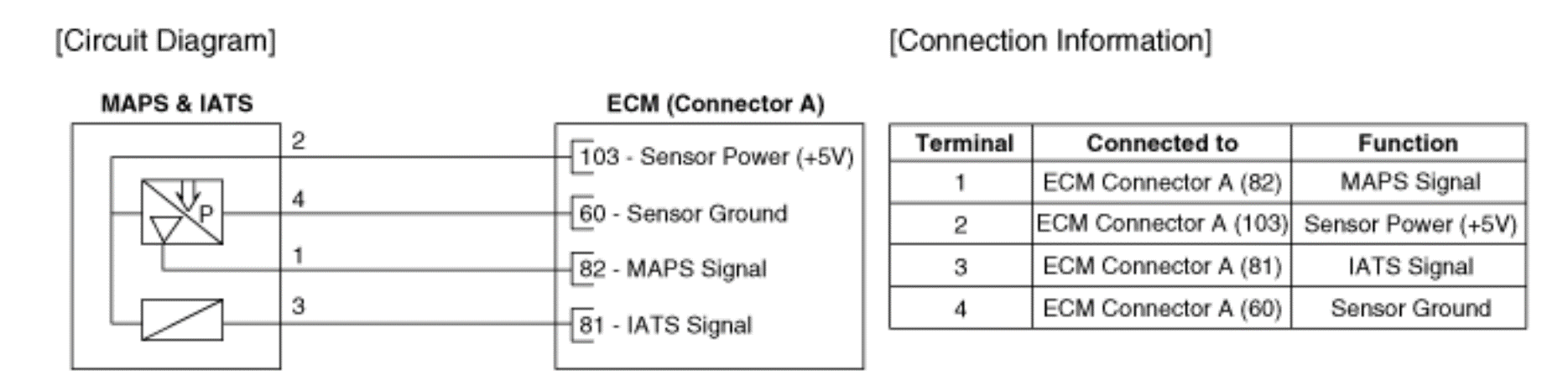

Home › Genesis › 2022 › G70 2.0T, RWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.0L › Manifold Absolute Pressure Sensor (MAPS) › Schematic Diagrams › Circuit Diagram › Notes
