Bank 2/Sensor 1

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

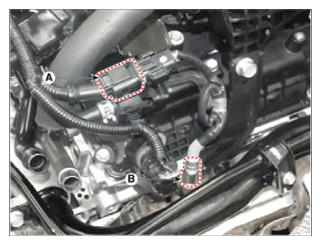

  2. Disconnect the connector (A).
  3. Remove the sensor (B).
G15591464Courtesy of HYUNDAI MOTOR AMERICA
