G70 3.3T, AWD
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Power Trunk Module
›
Power Trunk Open/Close Switch
›

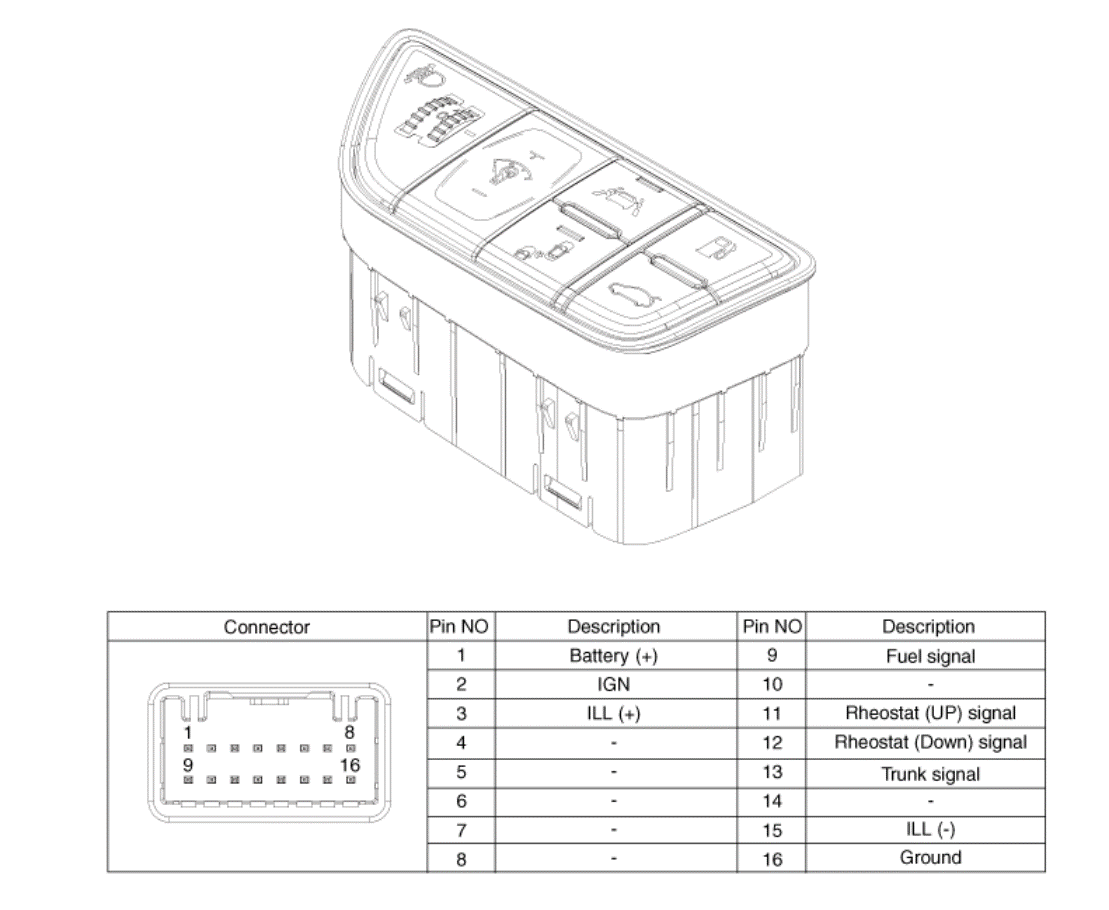

Connector And Terminal Information
Connector And Terminal Information
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
