Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

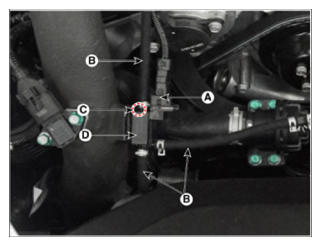

  2. Disconnect the RCV control solenoid valve connector (A) and vapor hoses (B).
  3. Remove the RCV contol solenoid valve (D) after loosening the mounting bolt (C).
G15591540Courtesy of HYUNDAI MOTOR AMERICA
