Repair Procedures: Removal

  1. Turn the ignition switch OFF.

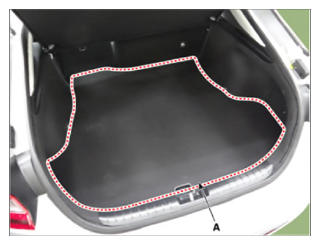

  2. Remove the luggage covering (A).
    G15591553Courtesy of HYUNDAI MOTOR AMERICA

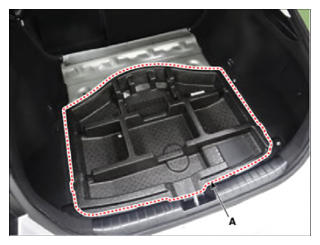

  3. Remove the luggage center tray (A).
    G15591554Courtesy of HYUNDAI MOTOR AMERICA

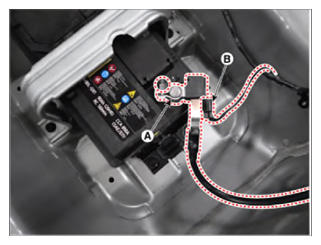

  4. Disconnect the battery negative (-) terminal (A).
  5. Disconnect the battery sensor connector (B).
    G15591555Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the battery sensor by loosening the mounting bolts (C).
    G15591556Courtesy of HYUNDAI MOTOR AMERICA
