Repair Procedures: Removal

1. Remove the ignition coil.

   (Refer to Engine Electrical System - "IGNITION COIL ")

2. Using a spark plug wrench, remove the spark plug (A).

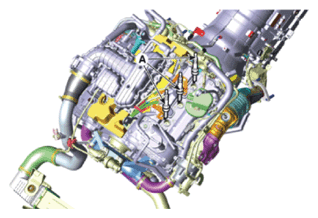

[Bank 1]

Courtesy of HYUNDAI MOTOR AMERICA

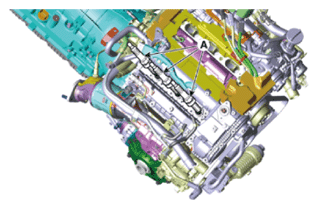

[Bank 2]

Courtesy of HYUNDAI MOTOR AMERICA
