End Of Line (EOL) Input

Overview and purpose
- The purpose is to ensure the initial operation safety by correcting the oil pressure differences between transmissions.
Condition required for inputting the hydraulic characteristic
- In case of changing the auto transmission assembly and TCM, perform "Oil-pressure characteristics input" procedure with GDS.
Oil-pressure characteristics (Bar code) location.

Courtesy of HYUNDAI MOTOR AMERICA

Method for inputting the hydraulic characteristic

In case of changing the automatic transmission assembly.

Perform "Oil-pressure characteristics input" procedure.
With the Internet access (automatic mode): Input serial number of the transmission.

Without the Internet access (manual mode): Input the oil-pressure characteristics in the bar code.

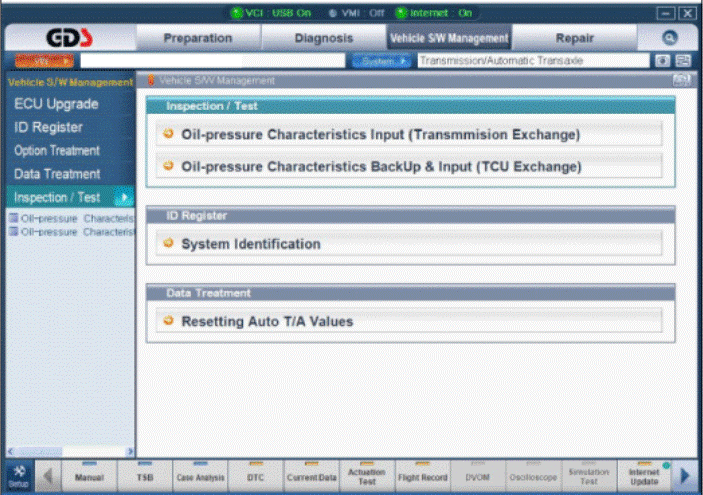

G15591696

Courtesy of HYUNDAI MOTOR AMERICA

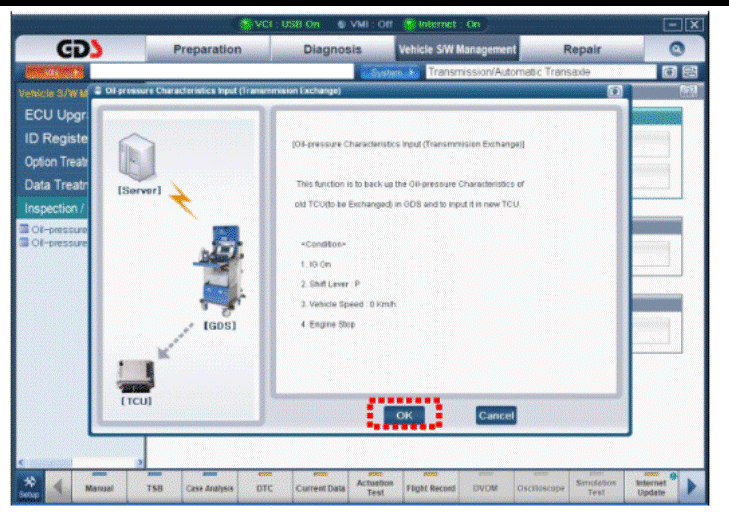

G15591697

Courtesy of HYUNDAI MOTOR AMERICA

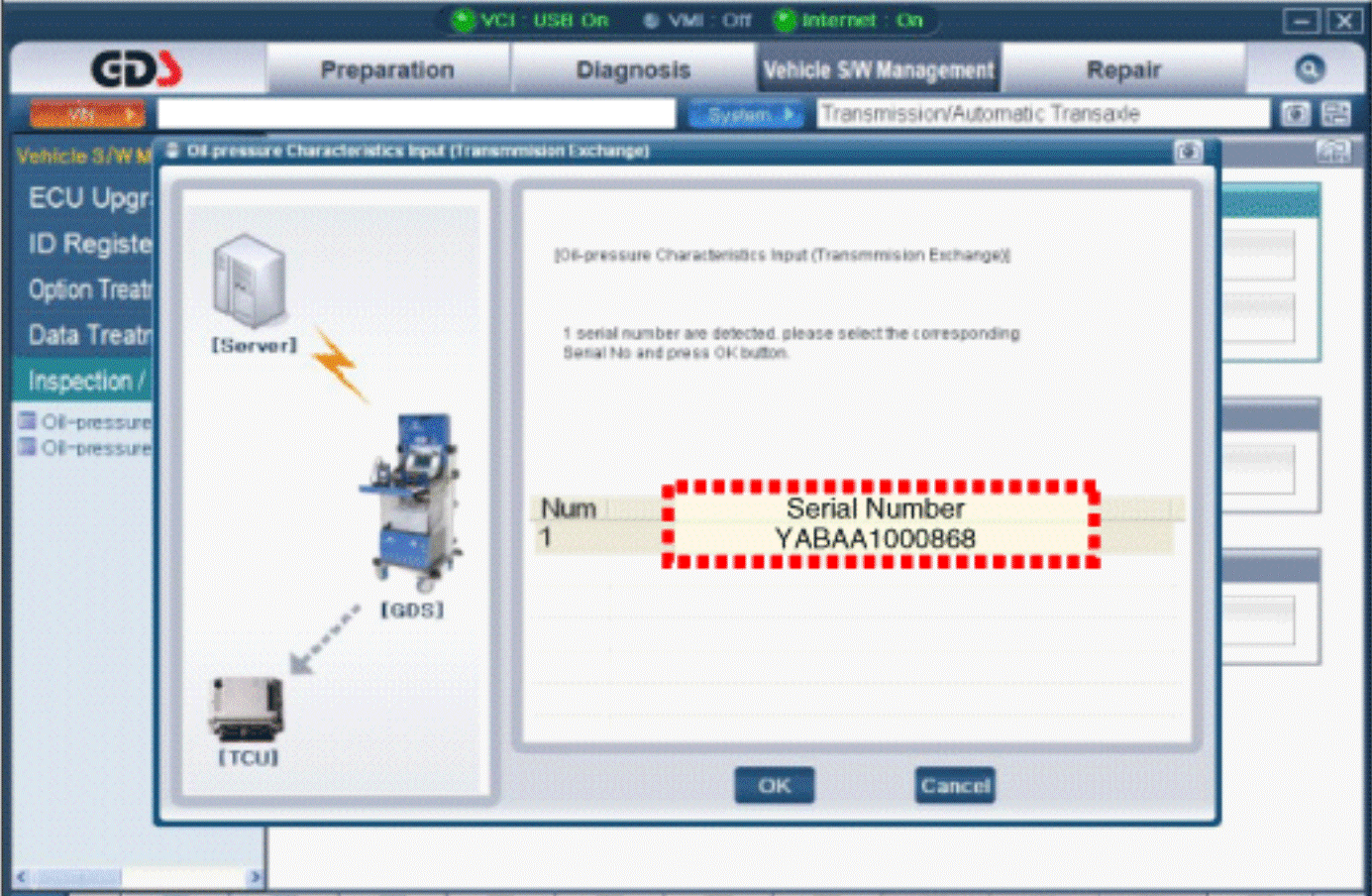

With the Internet access (automatic mode).

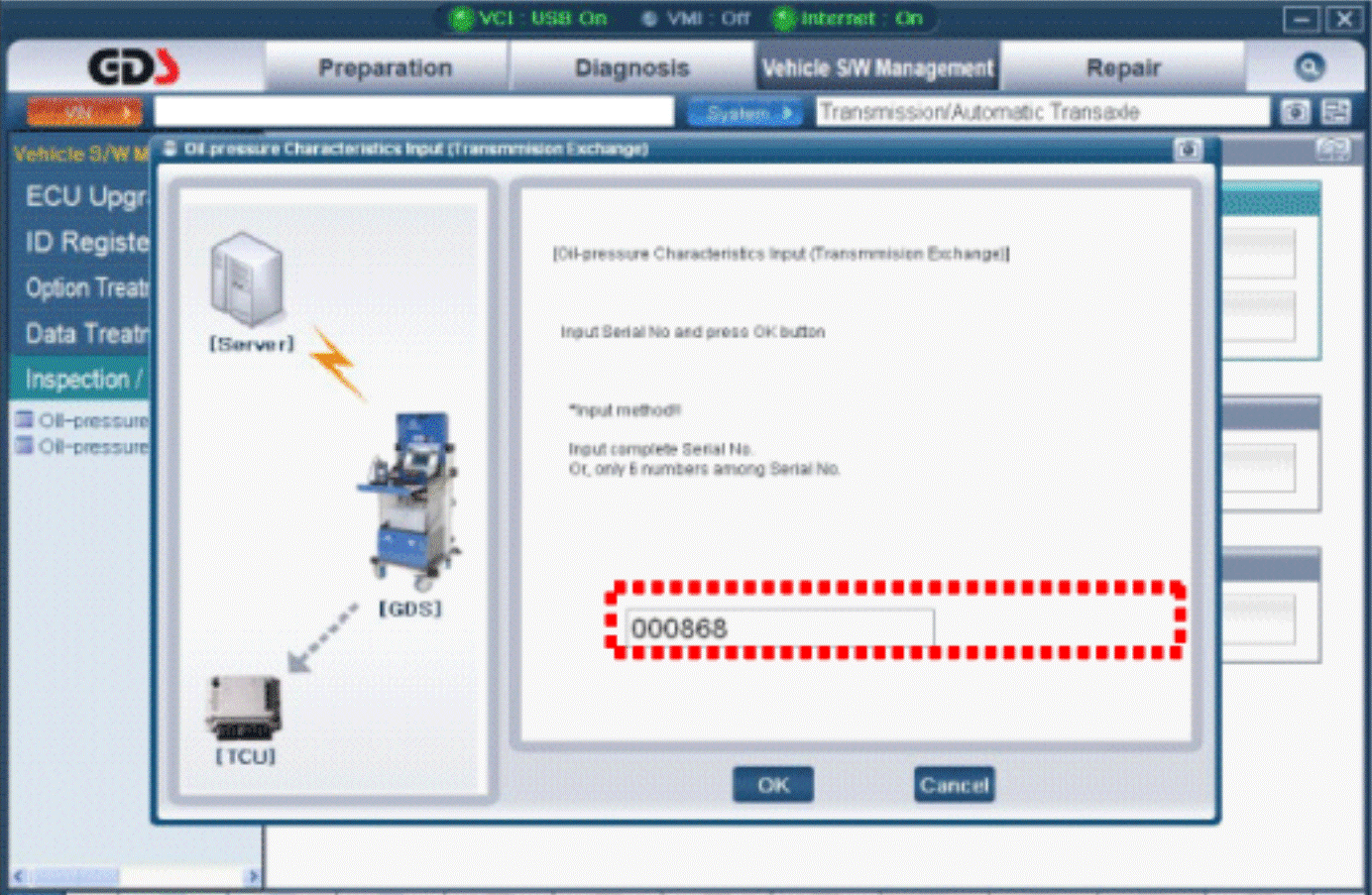

G15591698

Courtesy of HYUNDAI MOTOR AMERICA

G15591699

Courtesy of HYUNDAI MOTOR AMERICA

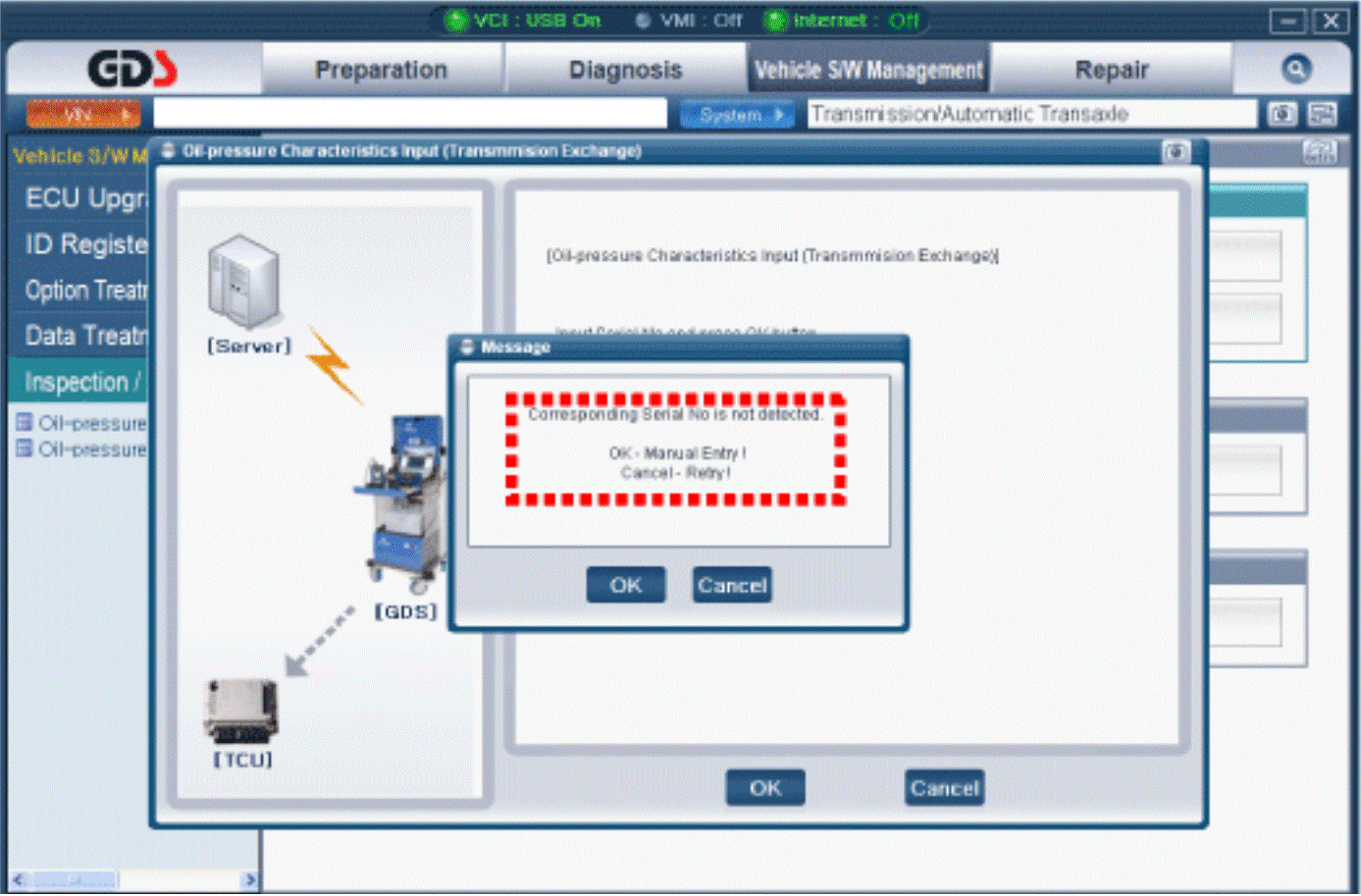

Without the Internet access (manual mode).

G15591700

Courtesy of HYUNDAI MOTOR AMERICA

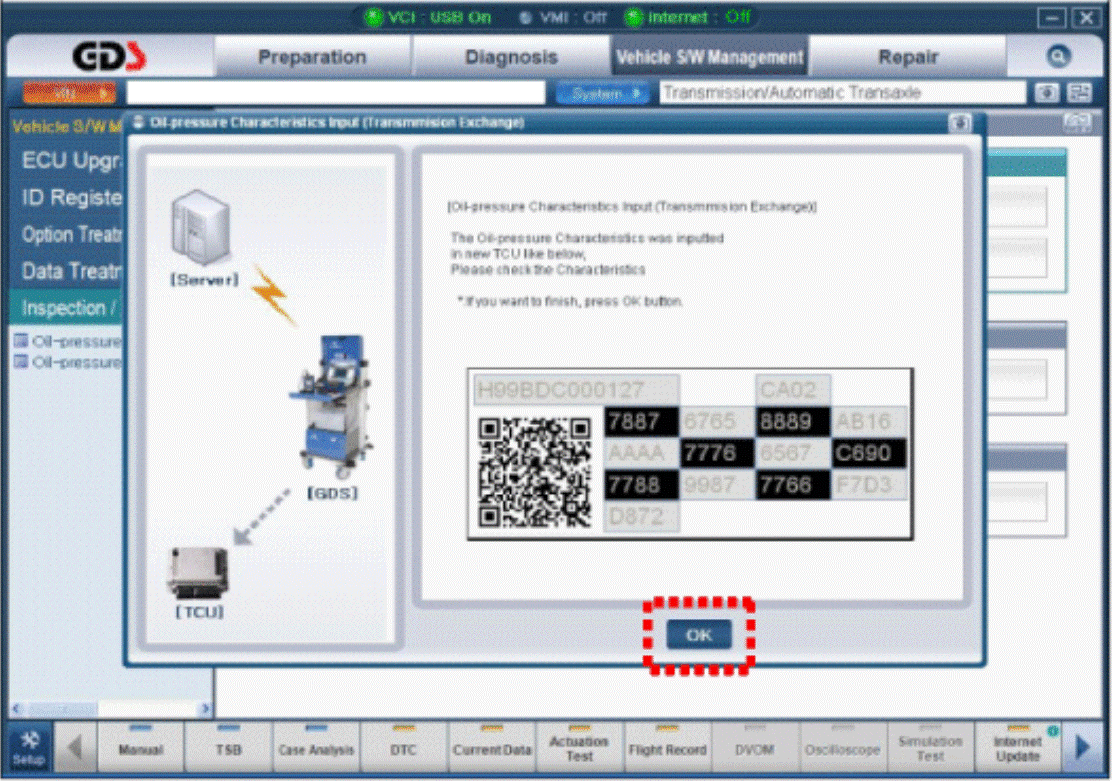

G15591701

Courtesy of HYUNDAI MOTOR AMERICA

In case of changing the TCM.

Perform "Oil-pressure characteristics backup & input" procedure.

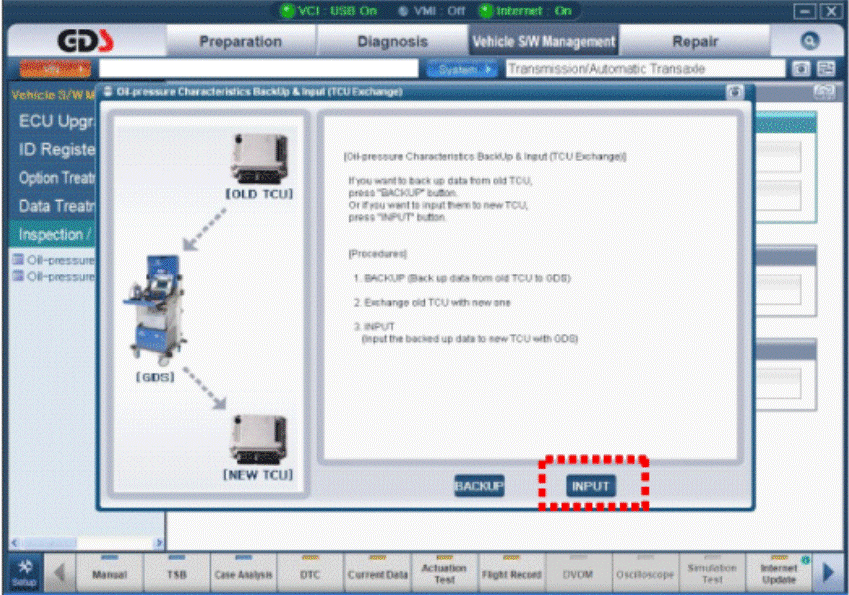

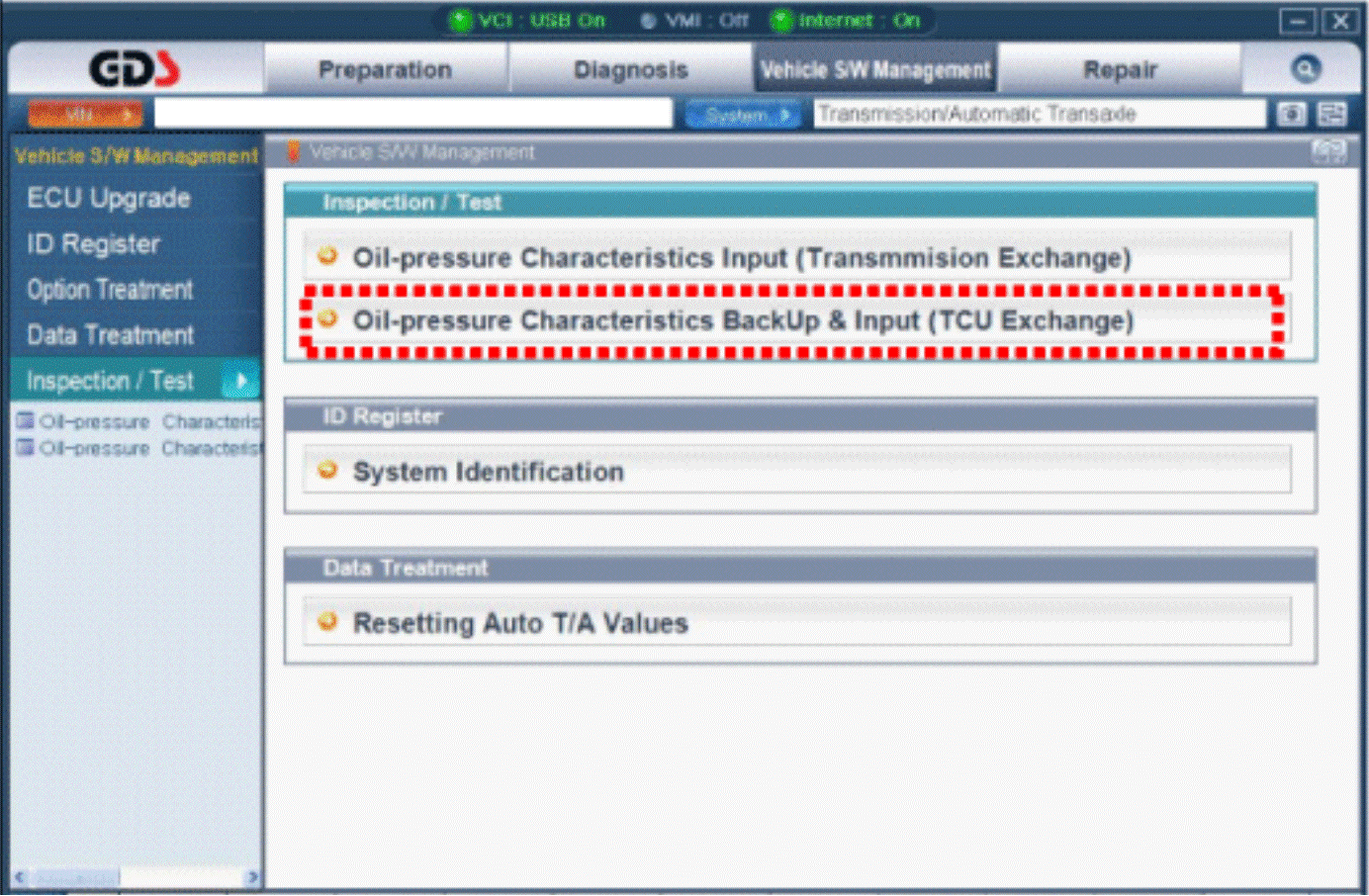

G15591702

Courtesy of HYUNDAI MOTOR AMERICA

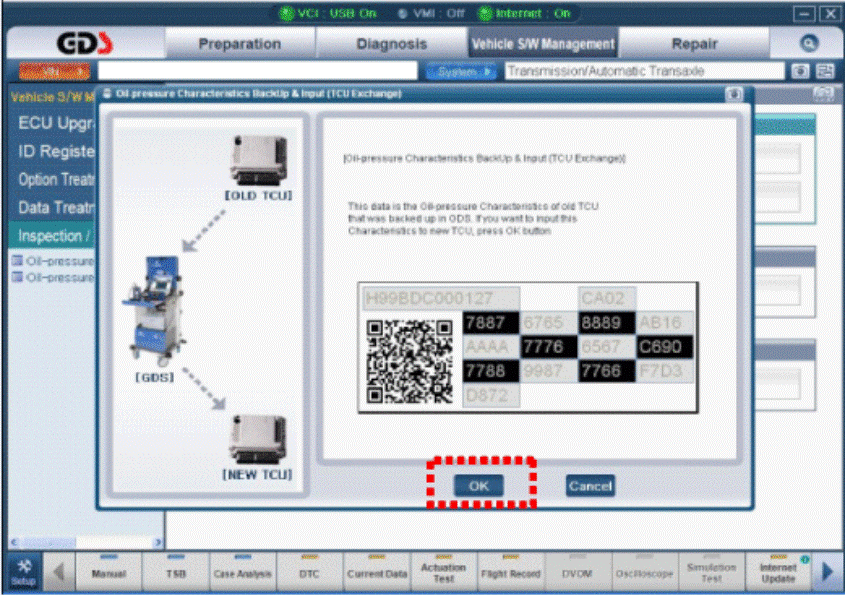

G15591703

Courtesy of HYUNDAI MOTOR AMERICA

Perform "Oil-pressure characteristics backup" procedure.

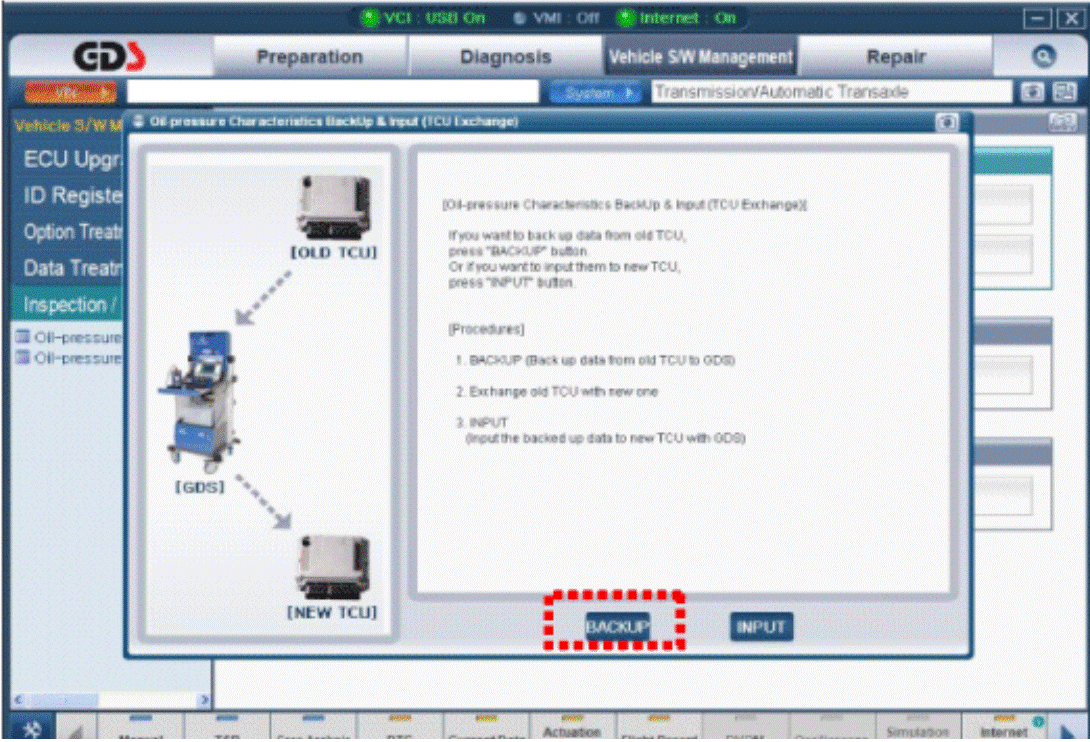

G15591704

Courtesy of HYUNDAI MOTOR AMERICA

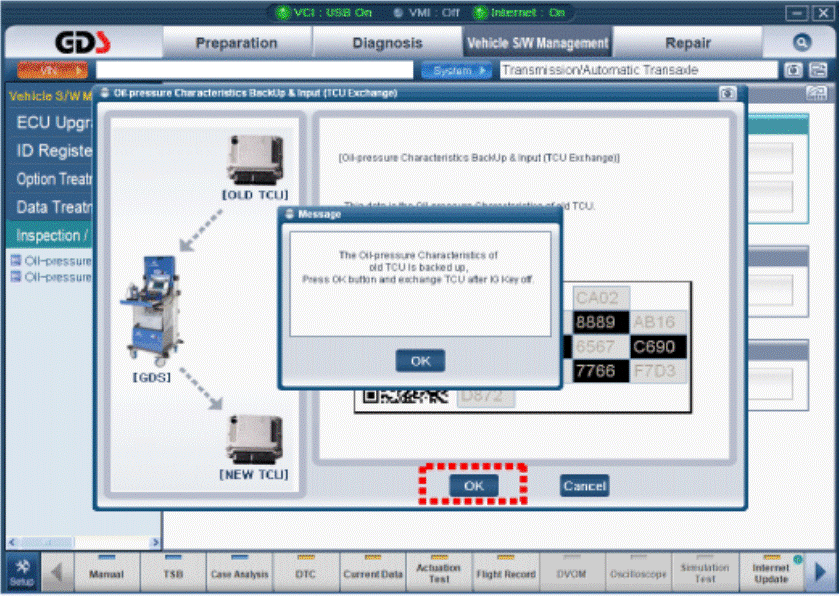

G15591705

Courtesy of HYUNDAI MOTOR AMERICA

Perform "Oil-pressure characteristics input" procedure.

G15591706

Courtesy of HYUNDAI MOTOR AMERICA

G15591707

Courtesy of HYUNDAI MOTOR AMERICA

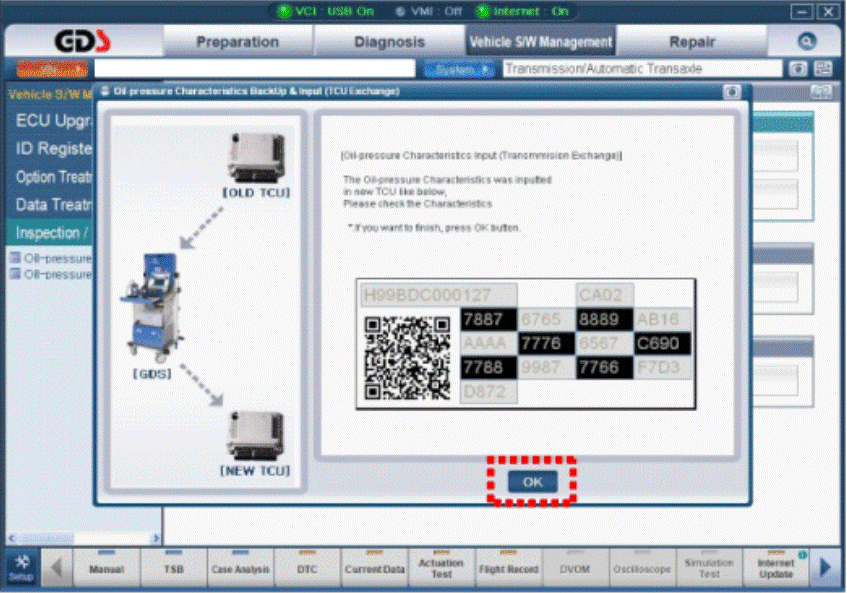

G15591708

Courtesy of HYUNDAI MOTOR AMERICA
