Repair Procedures: Inspection
- Turn ignition switch OFF.

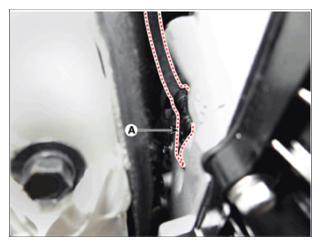

- Disconnect the main connector (A).
- Measure the resistance between oil temperature sensor terminal (15) and terminal (16).
- Check that the resistance is within the specification.
| Temp [(°C)°F] | Resistance (KΩ) |
|---|---|
| (-40) -40 | 139.5 |
| (-20) -4.0 | 47.4 |
| (0) 32.0 | 18.6 |
| (20) 68.0 | 8.1 |
| (40) 104.0 | 3.8 |
| (60) 140.0 | 1.98 |
| (80) 176.0 | 1.08 |
| (100) 212.0 | 0.63 |
| (120) 248.0 | 0.38 |
| (140) 284.0 | 0.25 |
| (160) 320.0 | 0.16 |
