Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

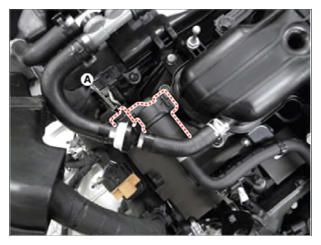

  2. Disconnect the purge control solenoid valve connector (A).
    G15591513Courtesy of HYUNDAI MOTOR AMERICA

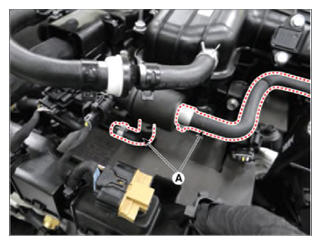

  3. Disconnect the vapor hoses (A) from the purge control solenoid valve.
  4. Remove the valve from the bracket.
G15591514Courtesy of HYUNDAI MOTOR AMERICA
