Downstream O2 Sensor Signal Inspection

Item	Normal Value	Prerequisite Condition			Probe (+)	Probe (-)

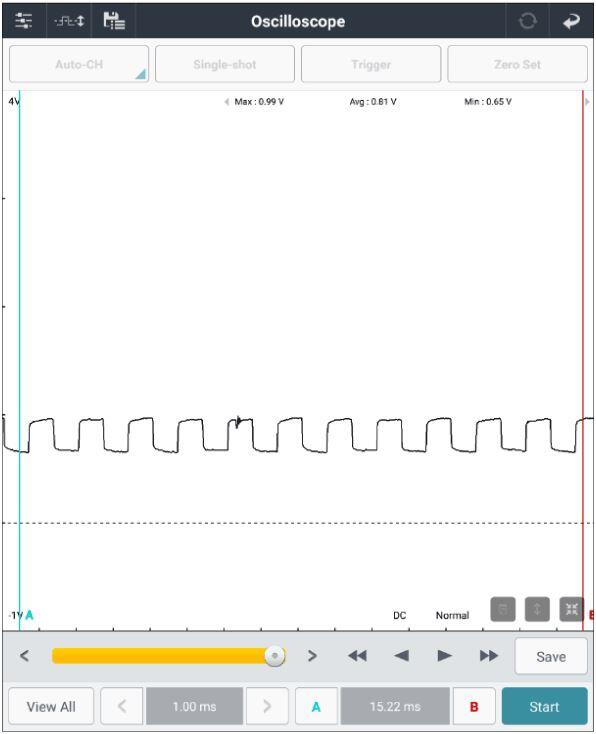

Signal circuit voltage	Refer to below figure	Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA	Signal circuit terminal	Ground circuit terminal

Courtesy of HYUNDAI MOTOR AMERICA
