Terminal Function

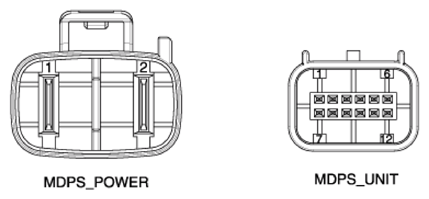

G14210114

Courtesy of HYUNDAI MOTOR AMERICA

Type	Pin No	Description
Battery	1	Battery -
Battery	2	Battery +
Vehicle	1	-
	2	-
	3	-
	4	-
	5	-
	6	-
	7	Ignition
	8	High_CAN
	9	Low_CAN
	10	-
	11	-
	12	-
