Front Seat Back Cover: Replacement

CAUTION:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Put on gloves to prevent hand injuries.
  1. Remove the front seat shield outer cover.

    (Refer to Front Seat - "FRONT SEAT SHIELD OUTER COVER ")

  2. Remove the front seat shield inner cover.

    (Refer to Front Seat - "FRONT SEAT SHIELD INNER COVER ")

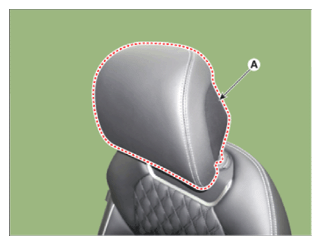

  3. Push the lock pin, remove the front seat headrest (A).
    G14754468Courtesy of HYUNDAI MOTOR AMERICA

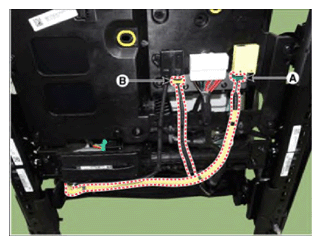

  4. Separate the center airbag connector (A) and center side airbag connector (B).
    G14754469Courtesy of HYUNDAI MOTOR AMERICA

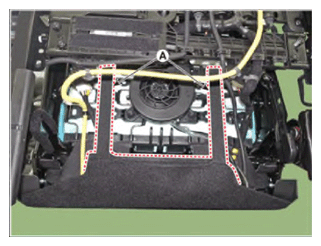

  5. Separate the front seat lower protector (A).
    G14754470Courtesy of HYUNDAI MOTOR AMERICA

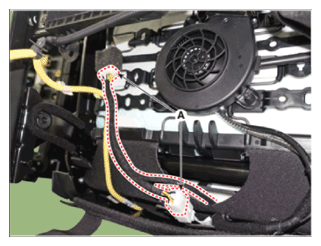

  6. Disconnect the connectors (A).
    G14754471Courtesy of HYUNDAI MOTOR AMERICA

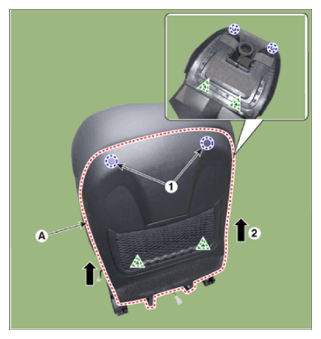

  7. Remove the front seat back board (A).
    NOTE:
    • Grasp the both lower sides of back board with hands and then remove it in the direction of the arrow.
    • Be careful not to damage the fixing clips.
    G14754472Courtesy of HYUNDAI MOTOR AMERICA

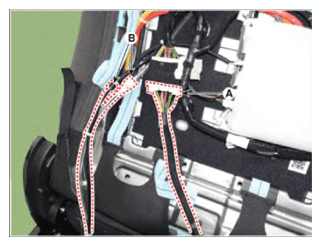

  8. Disconnect the ergo motion connector (A) and tube (B).
    G14754473Courtesy of HYUNDAI MOTOR AMERICA

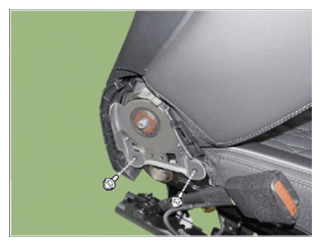

  9. Loosen the mounting bolts and separate the front seat back frame and front seat cushion frame.

    Tightening torque:

    44.1 - 53.9 N.m (4.5 - 5.5 kgf.m, 32.5 - 39.8 - 50.6 lb-ft)

    [LH]

    G14754474Courtesy of HYUNDAI MOTOR AMERICA

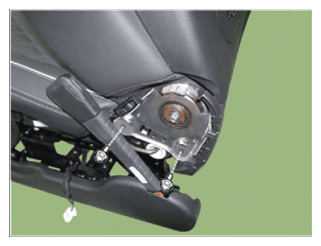

    [RH]

    G14754475Courtesy of HYUNDAI MOTOR AMERICA

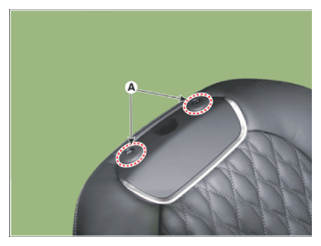

  10. Remove the headrest guides (A).
    G14754476Courtesy of HYUNDAI MOTOR AMERICA

    Information

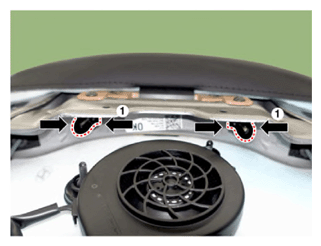

    1. Press both locking pins.
      G14754477Courtesy of HYUNDAI MOTOR AMERICA

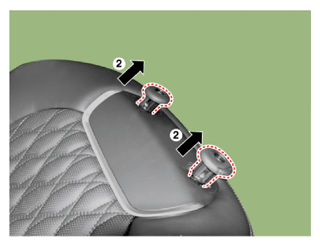

    2. Remove the headrest guide in the direction of the arrow.
    G14754478Courtesy of HYUNDAI MOTOR AMERICA

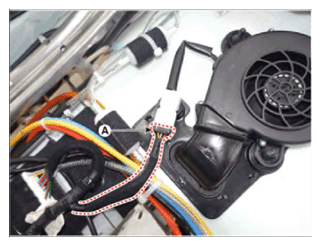

  11. Disconnect the seat blower connector (A).
    G14754479Courtesy of HYUNDAI MOTOR AMERICA

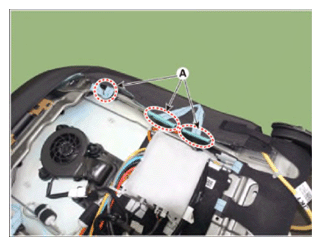

  12. Remove the protector (A) from the front seat back frame and then remove the front seat back cover.

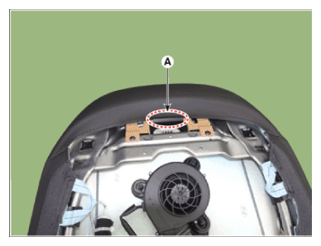

    [Upper]

    G14754480Courtesy of HYUNDAI MOTOR AMERICA

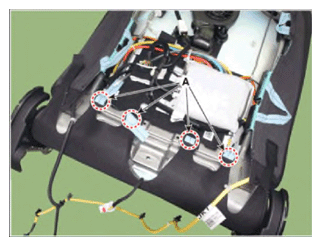

    [Lower]

    G14754481Courtesy of HYUNDAI MOTOR AMERICA

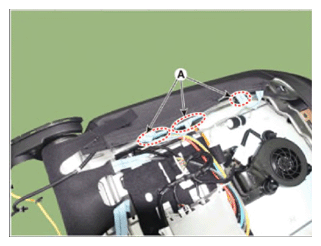

    [LH]

    G14754482Courtesy of HYUNDAI MOTOR AMERICA

    [RH]

    G14754483Courtesy of HYUNDAI MOTOR AMERICA

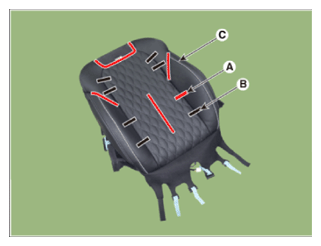

  13. After removing the Velcro tape (A) and tie-down clips (B) inside the front seat back cover, remove the seat back cover (C).
    G14754484Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • Be careful not to deviate from the pads, insert wires, and aplix.
  14. To install, reverse removal procedure.
