Front Power Window Motor

  1. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

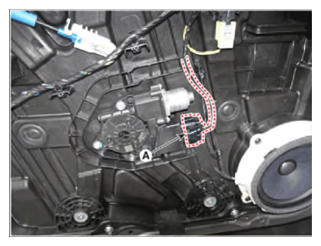

  2. Remove the front power window motor (A) after loosening the mounting bolts and disconnecting the connector.
    G14764700Courtesy of HYUNDAI MOTOR AMERICA
