Rear Power Window Motor

  1. Remove the rear door trim.

    (Refer to Body - "REAR DOOR TRIM ")

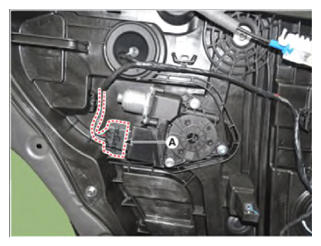

  2. Remove the rear power window motor (A) after loosening the mounting bolts and disconnecting the connector.
    G14764701Courtesy of HYUNDAI MOTOR AMERICA
