Dynamic Damper: Installation

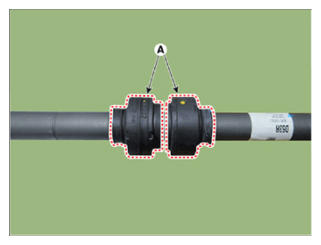

- Install the dynamic damper (A).NOTE:
- When installing the dynamic damper, install it in set with the mounting part (A) of the shaft.

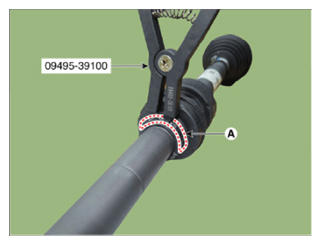

- Install the dynamic damper band (A) using SST (09495-39100).
- Install the transaxle side joint. (Refer to Driveshaft Assembly - "JOINT ASSEMBLY (TRANSAXLE SIDE) ")
- Install the front driveshaft. (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
