Home › Genesis › 2022 › GV70 2.5T Advanced › Repair and Diagnosis › Engine Mechanical › Lubrication System - 2.5L › Components & Components Location › Components

Components & Components Location: Components

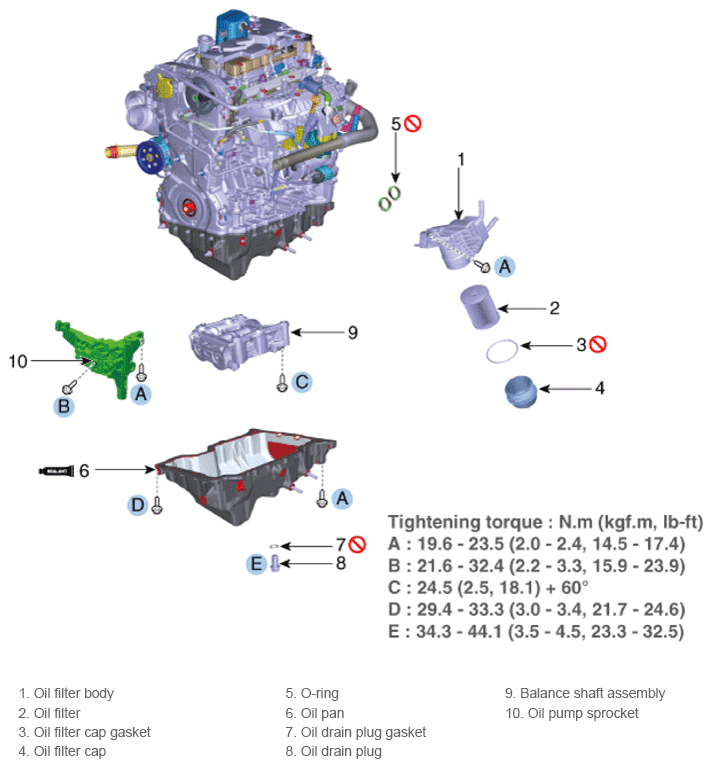

Fig 1: Lubrication System Components Location With Torque Specification
G14752735Courtesy of HYUNDAI MOTOR AMERICA
