Home › Genesis › 2022 › GV70 2.5T Advanced › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.5L › Camshaft Position Sensor (CMPS) › Components And Components Location › Camshaft Position Sensor (CMPS) [Bank 1/Intake]

Camshaft Position Sensor (CMPS) [Bank 1/Intake]

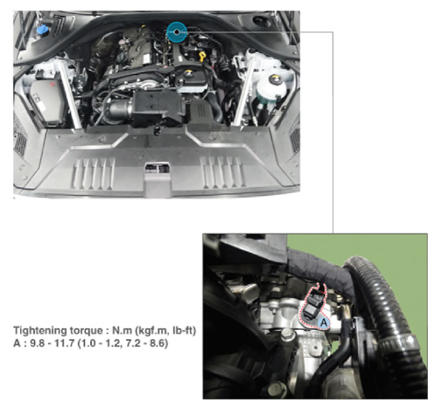

Fig 1: Camshaft Position Sensor (Bank 1/Intake) Components Location With Torque Specification
G14753151Courtesy of HYUNDAI MOTOR AMERICA
