Home › Genesis › 2022 › GV70 2.5T Advanced › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.5L › Engine Coolant Temperature Sensor (ECTS) › Components And Components Location › Engine Coolant Temperature Sensor (ECTS) #1 - Water temperature control assembly side

Engine Coolant Temperature Sensor (ECTS) #1 - Water temperature control assembly side

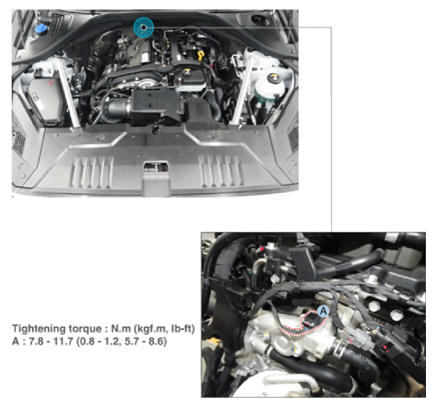

Fig 1: Engine Coolant Temperature Sensor #1 Components Location With Torque Specification (Water Temperature Control Assembly Side)
G14753137Courtesy of HYUNDAI MOTOR AMERICA
