Connector assembly status test

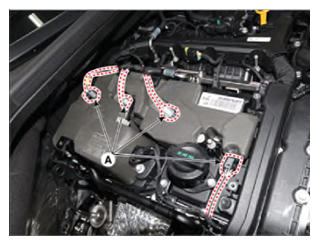

  1. Disconnect the ignition coil connectors (A) and reinstall it.
    G14753012Courtesy of HYUNDAI MOTOR AMERICA
  2. Remove the ignition coil form (A).
    G14753013Courtesy of HYUNDAI MOTOR AMERICA

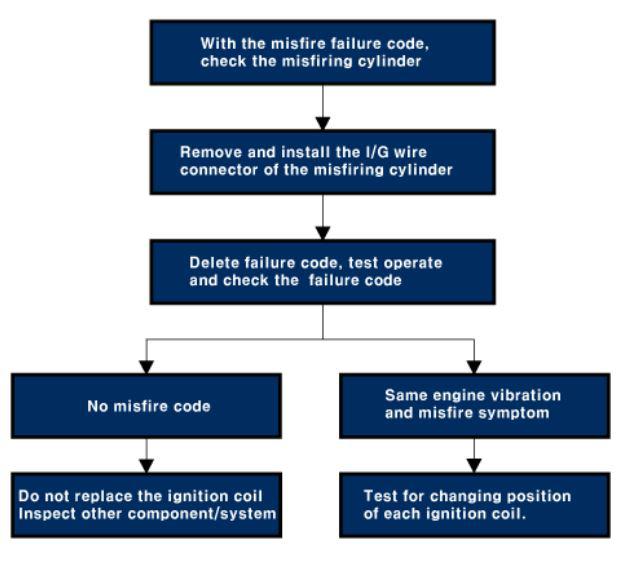

    G14753014Courtesy of HYUNDAI MOTOR AMERICA
