Engine Control System Diagnosis - 2.5L (6 Of 6)
›
DTC P2B95-00: Cold Start Injection Pulse Performance
›
Troubleshooting
›
Diagnostic Flowchart
Diagnostic Flowchart

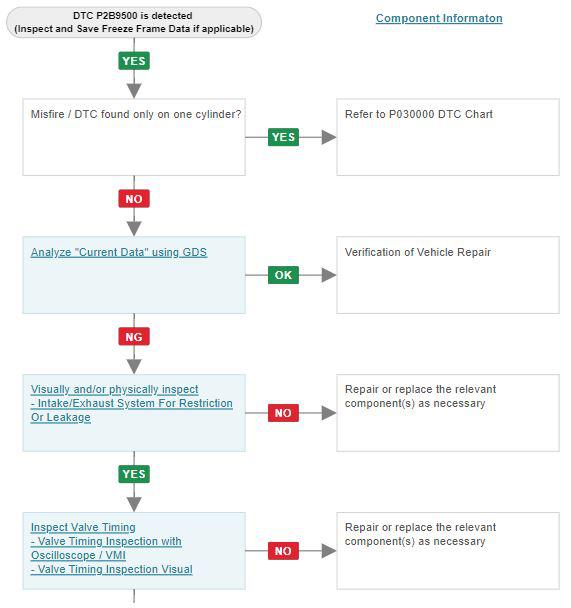

Fig 1: 1 Of 3
Courtesy of HYUNDAI MOTOR AMERICA

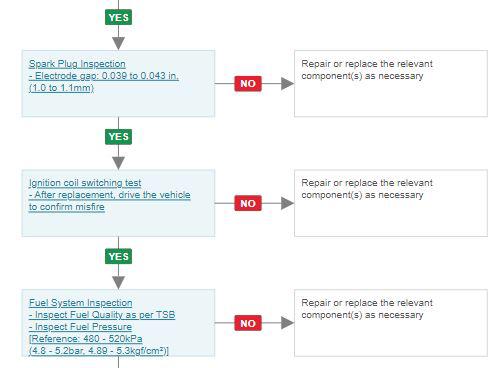

Fig 2: 2 Of 3
Courtesy of HYUNDAI MOTOR AMERICA

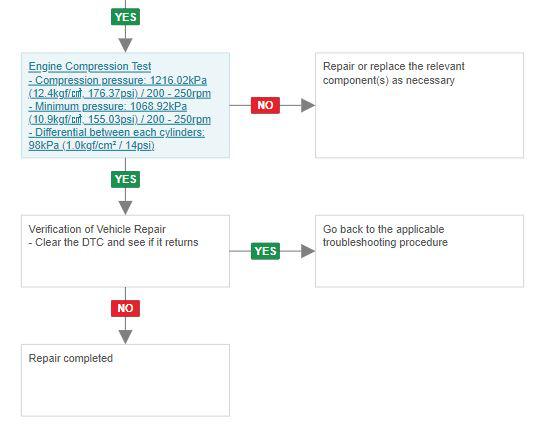

Fig 3: 3 Of 3
Courtesy of HYUNDAI MOTOR AMERICA
