Wheel Alignment: Tires/Wheels/Alignment: Wheel: Installation

  1. Install the wheel and tire (A).

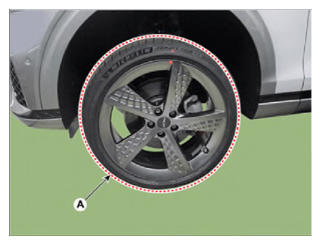

    [Front]

    G14753654Courtesy of HYUNDAI MOTOR AMERICA

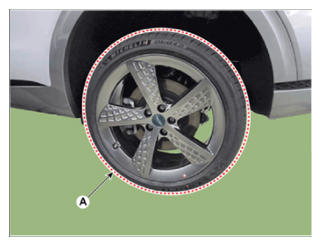

    [Rear]

    G14753655Courtesy of HYUNDAI MOTOR AMERICA
  2. Tighten the hub nuts as follows.

    Tightening torque:

    137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)

    NOTE:
    • When using an impact gun, final tightening torque should be checked using a torque wrench.
      G14753656Courtesy of HYUNDAI MOTOR AMERICA
