Automatic Transmission System
›
Components And Components Location
Components And Components Location

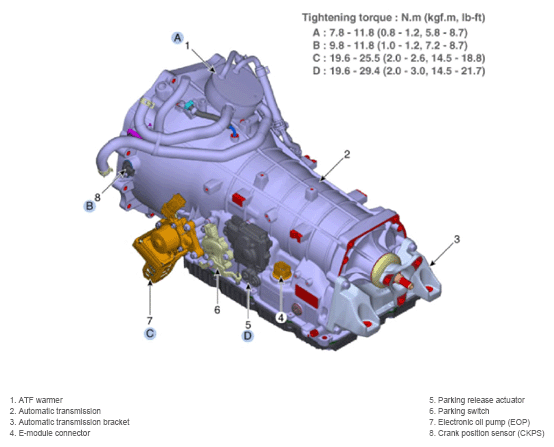

Fig 1: Automatic Transmission System Components Location With Torque Specification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
