Front View Camera: Removal

  1. Disconnect the negative (-) battery terminal.

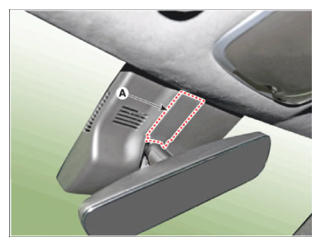

  2. Remove the inside rear view mirror cover (A).
    G14765280Courtesy of HYUNDAI MOTOR AMERICA

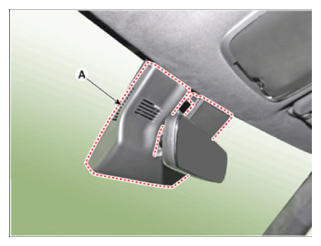

  3. Remove the rain sensor cover (A).
    G14765281Courtesy of HYUNDAI MOTOR AMERICA

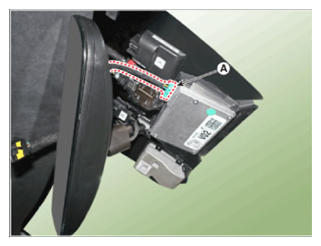

  4. Disconnect the front view camera connector (A).
    G14765282Courtesy of HYUNDAI MOTOR AMERICA

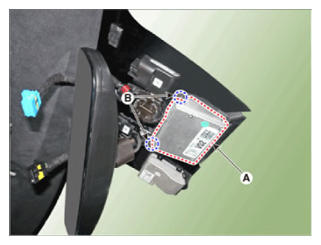

  5. Separate the fixed points (B) of coupler, remove the front view camera (A).
    NOTE:
    • Be careful not to break the fixed points (B).
    G14765283Courtesy of HYUNDAI MOTOR AMERICA
