Charging System: Alternator

Item Specification
Rated voltage 13.5 V, 180 A
Speed in use 0 - 18, 000 RPM
Pin 1 (LIN)
Pulley Type OAP pulley

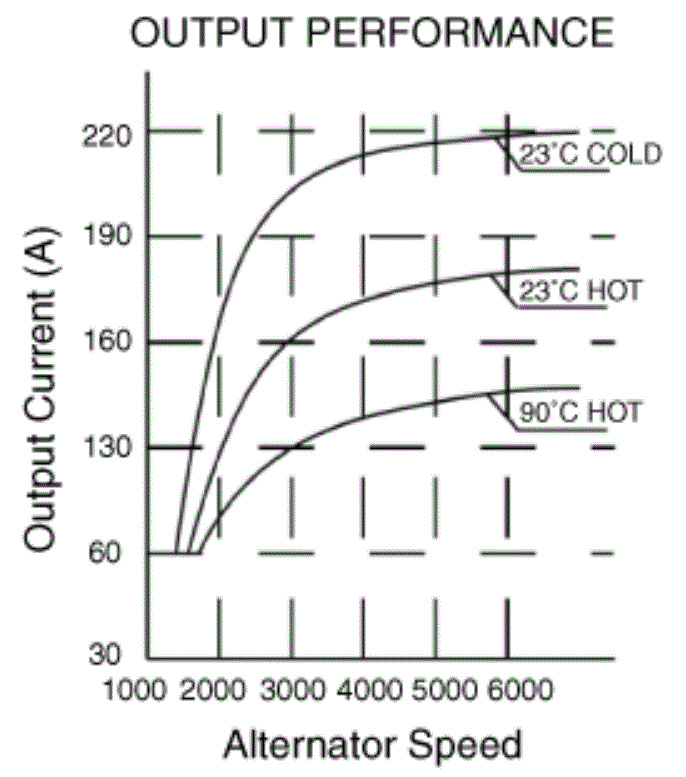

G14766058Courtesy of HYUNDAI MOTOR AMERICA

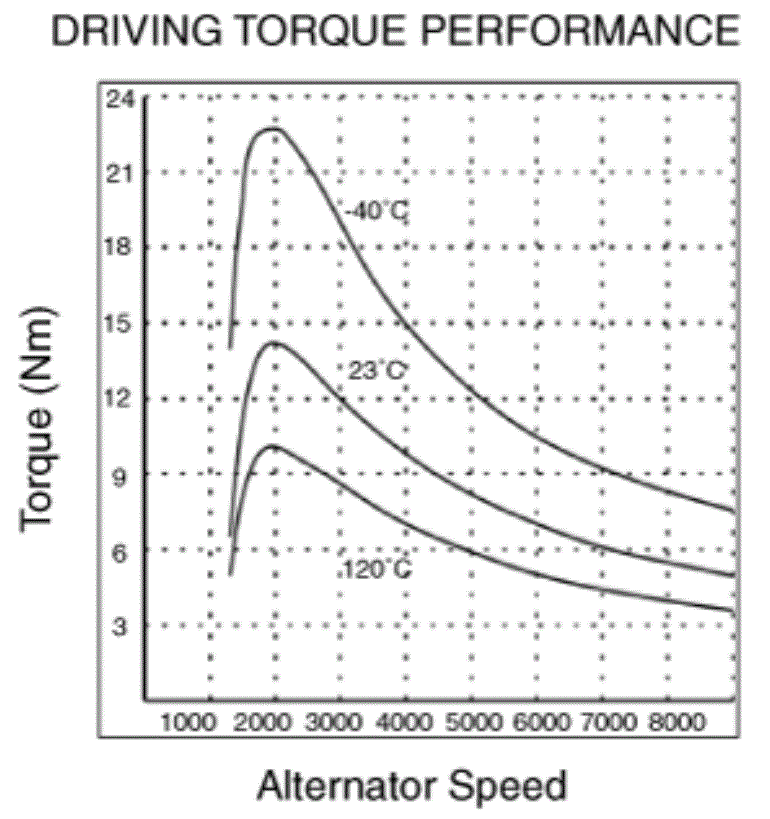

G14766059Courtesy of HYUNDAI MOTOR AMERICA
