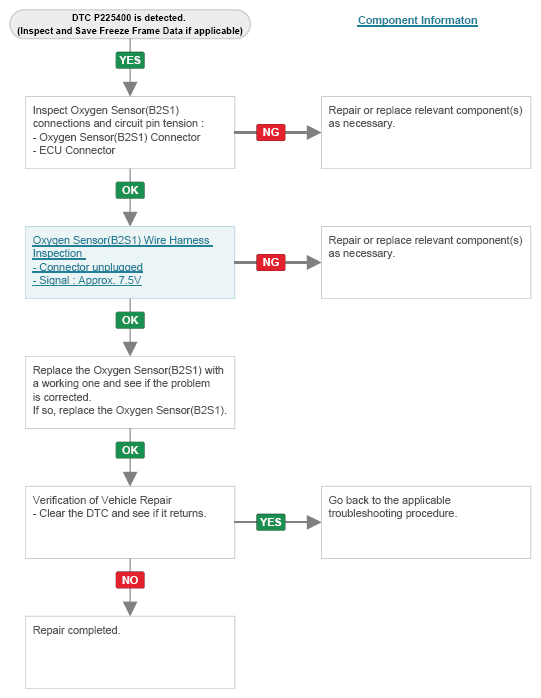

Home › Genesis › 2022 › GV70 3.5T › Repair and Diagnosis › Engine Performance › System › Engine Control System Diagnosis - 3.5L (8 Of 9) › DTC P2254-00: O2 Sensor Reference Ground Circuit/Open (Bank 2 Sensor 1) › Troubleshooting › Diagnostic Flowchart
