Steering column module (SCM)

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")

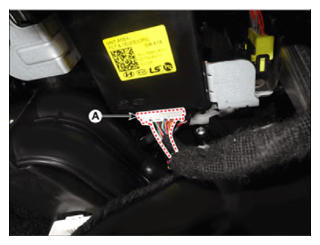

Disconnect the steering column module connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

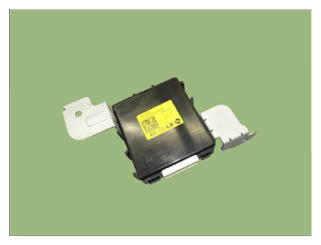

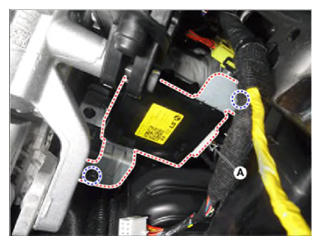

Remove the steering column module (A) after loosening the mounting nuts.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedures.
