Automatic Transmission System - 3.5L
›
Components and Components Location
Components and Components Location

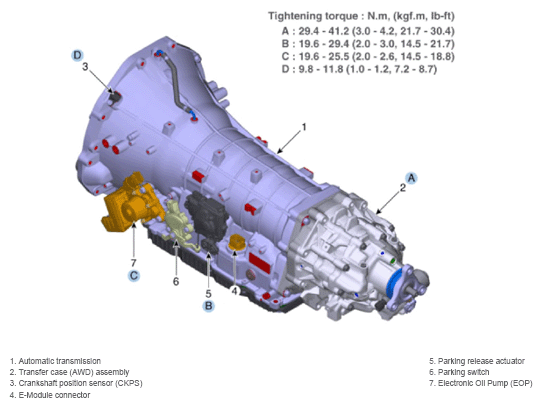

Fig 1: Automatic Transmission Components Location With Torque Specification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
