Front View Camera: Removal

  1. Ignition switch OFF and then disconnect the negative (-) battery terminal.

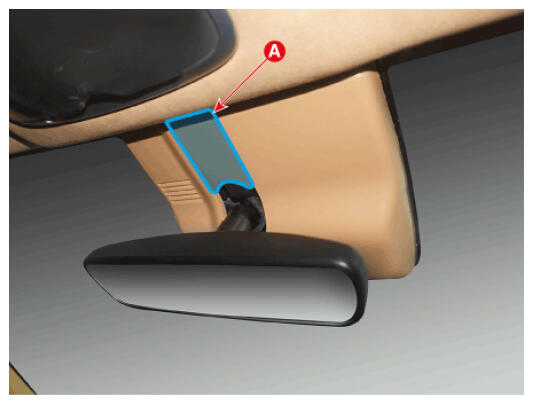

  2. Remove the inside rear view mirror cover (A).
    G16877795Courtesy of HYUNDAI MOTOR AMERICA

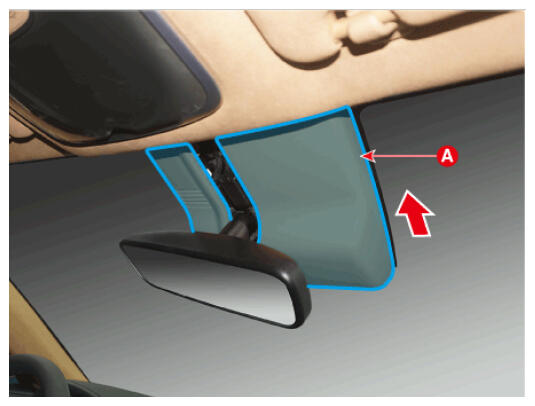

  3. Remove the rain sensor cover (A).
    G16877796Courtesy of HYUNDAI MOTOR AMERICA

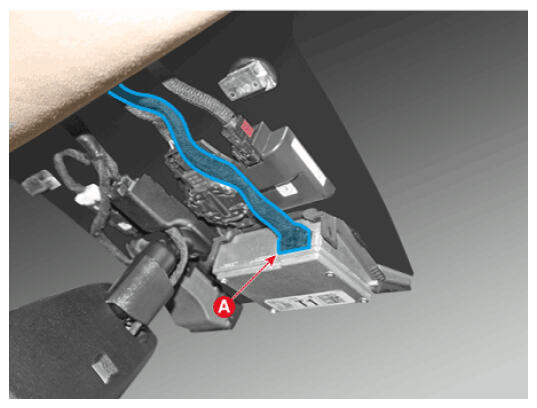

  4. Disconnect the front view camera connector (A).
    G16877797Courtesy of HYUNDAI MOTOR AMERICA

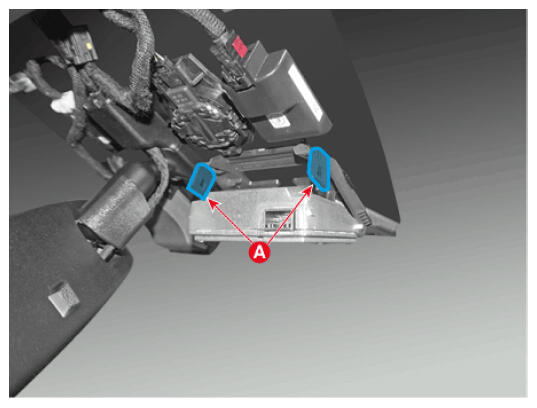

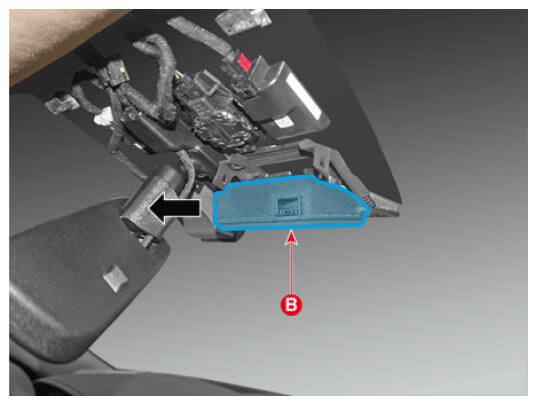

  5. Remove the front camera (B) by pulling both hooks (A).
    NOTE:
    • When separating the fixed points (A), be careful not to damage it.
    G16877798Courtesy of HYUNDAI MOTOR AMERICA
    G16877799Courtesy of HYUNDAI MOTOR AMERICA

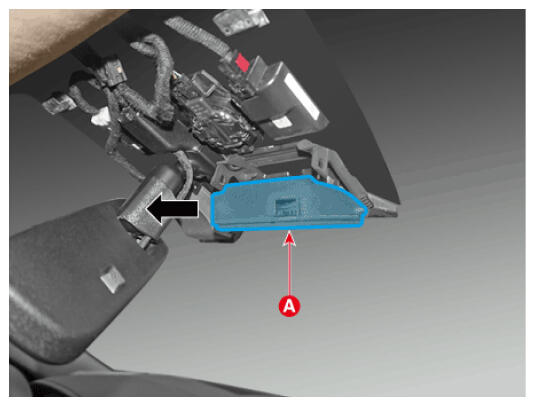

  6. Remove the front view camera (A).
G16877800Courtesy of HYUNDAI MOTOR AMERICA
