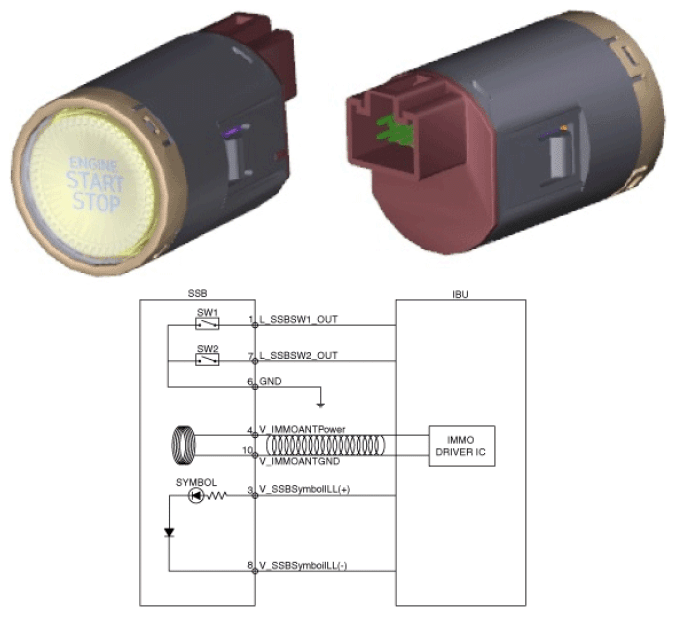

Components And Components Location: Component

Courtesy of HYUNDAI MOTOR AMERICA

Connector A	NO	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	SSB Switch 1 (OUT)
	2	-
	3	SSB illumination (+)
	4	Immobilizer Power
	5	-
	6	Ground
	7	SSB Switch 2
	8	SSB Illumination (-)
	9	-
	10	Immobilizer Ground
