Components And Components Location: Component

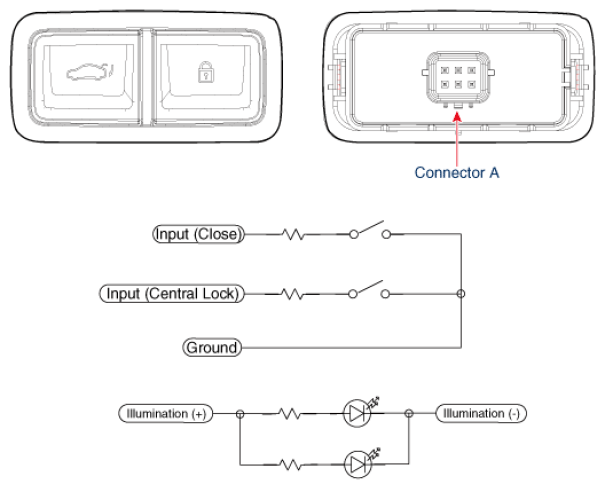

G16872928Courtesy of HYUNDAI MOTOR AMERICA
Connector A Pin Description
G16872929Courtesy of HYUNDAI MOTOR AMERICA
 1 Central Lock
2 -
3 Trunk dose
4 Illumination (+)
5 Ground
6 Illumination (-)
