Power Trunk Lid Control Unit: Removal

1. Disconnect the negative (-) battery terminal.
2. Remove the luggage side trim [LH].

   (Refer to Body - "LUGGAGE SIDE TRIM ")

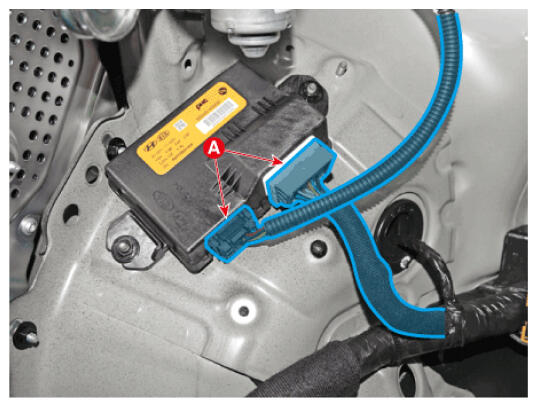

3. Disconnect power trunk Lid control unit connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

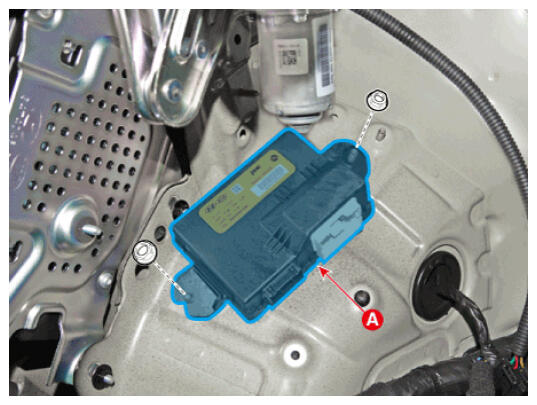

4. Remove the power trunk Lid control unit (A) after loosening the mounting nuts.

Courtesy of HYUNDAI MOTOR AMERICA
