Power Seat Module: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

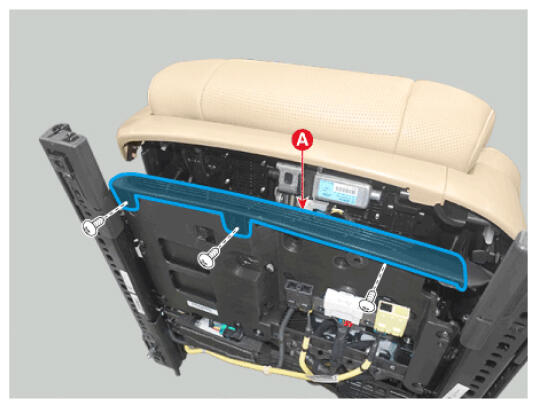

  3. Loosen the mounting screws and remove the front seat shield front cover (A).
    G16872685Courtesy of HYUNDAI MOTOR AMERICA

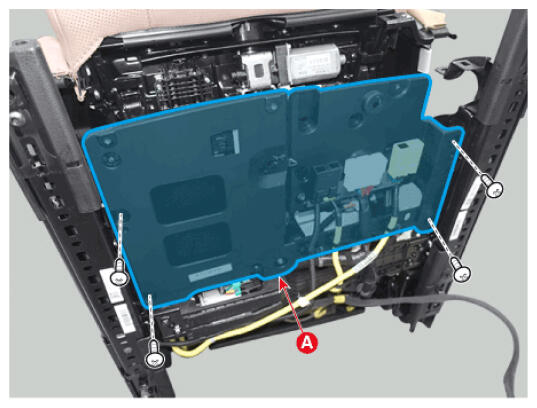

  4. Loosen the mounting screws and remove the front seat cushion protector cover (A).
    G16872686Courtesy of HYUNDAI MOTOR AMERICA

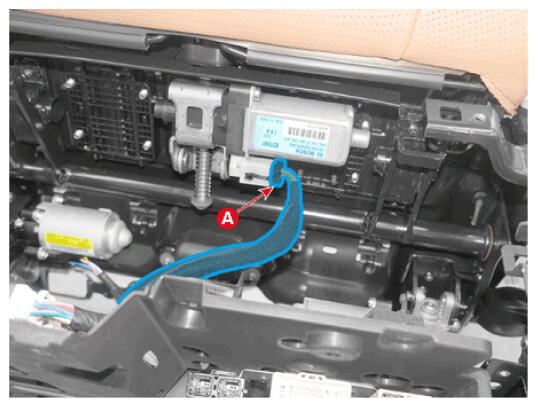

  5. Disconnect the IMS tilt extension motor connector (A).
    G16872687Courtesy of HYUNDAI MOTOR AMERICA

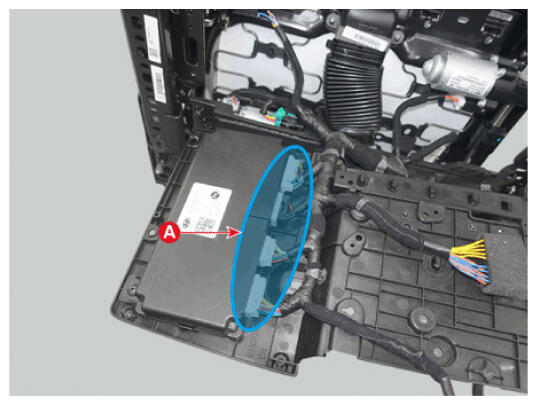

  6. Disconnect the power seat unit connector (A).
G16872688Courtesy of HYUNDAI MOTOR AMERICA
