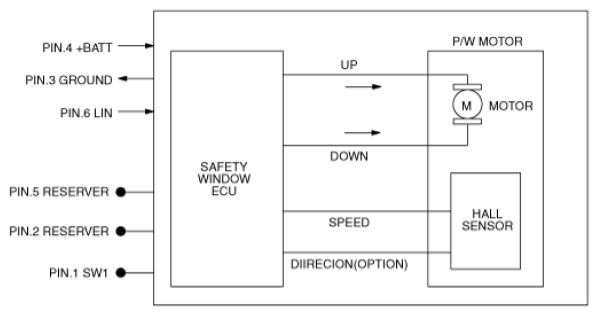

Components And Components Location: Components

Courtesy of HYUNDAI MOTOR AMERICA

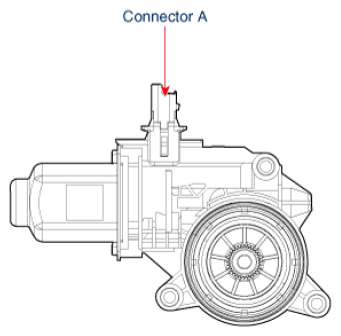

Connector A
Courtesy of HYUNDAI MOTOR AMERICA
Pin	Description
1	Switch 1
2	-
3	Ground
4	Battery (+)
5	-
6	LIN

Courtesy of HYUNDAI MOTOR AMERICA
