Rear Window Glass: Removal
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- Use seat covers to avoid damaging any surfaces.
- Remove the rear package tray trim.
(Refer to Interior Trim - "REAR PACKAGE TRAY TRIM ")

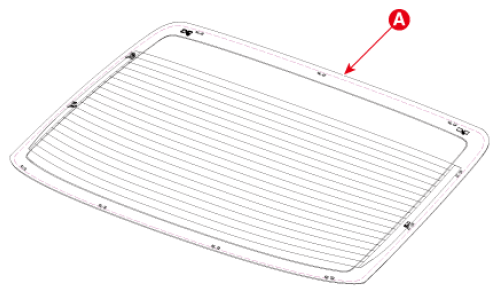

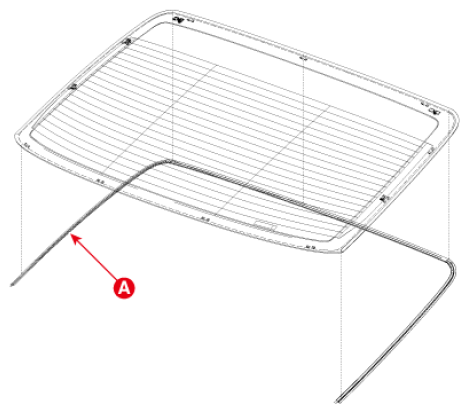

- Cut off the rear window glass molding (A) using the cutter.

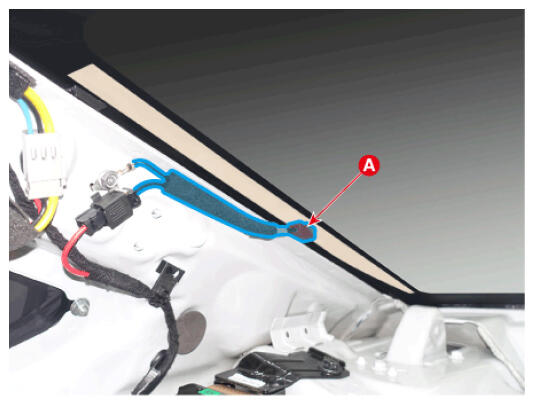

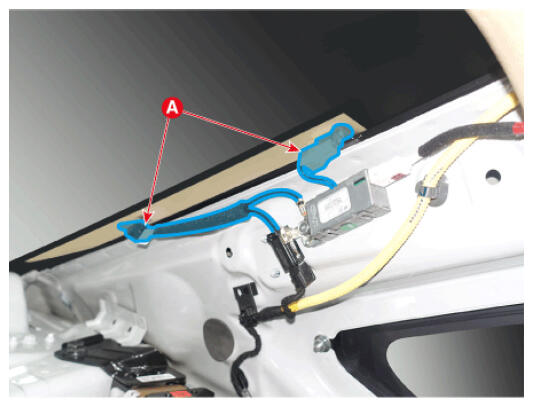

- Detach the rear window glass hot wire connector (A).
[LH]
[RH]
- Spread WD-40 on the outer edges of rear window glass.

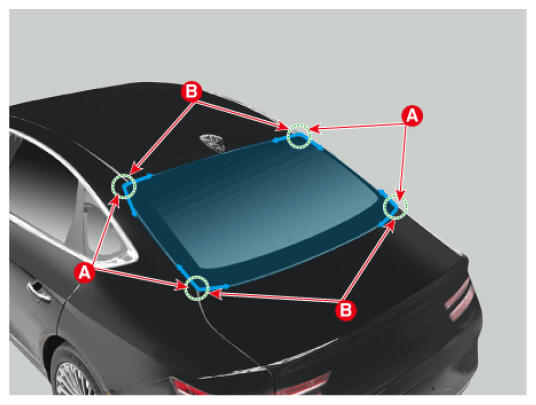

- Cut off the sealant on the edge (B) while pulling the piano wire (A) to the left and right.CAUTION:
- Put on gloves to protect your hands.
- Heat may occur when working on the wires. Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.

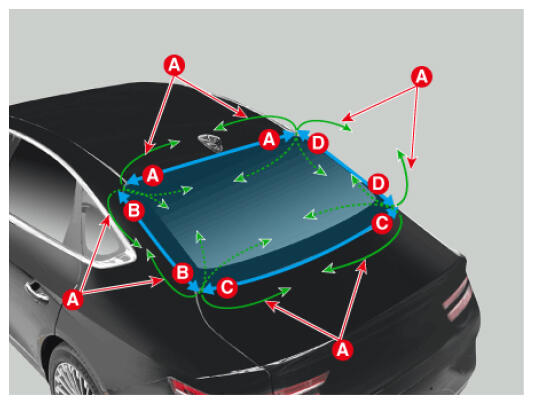

- Put in a piano wire (A) through the corner of the windshield glass and insert wire grips into both ends of the wire.
- Cut off the sealant on (A-A), (B-B), (C-C), while pulling a piano wire (A) to the left and right.CAUTION:
- Put on gloves to protect your hands.
- Heat may occur when working on the wires. Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.

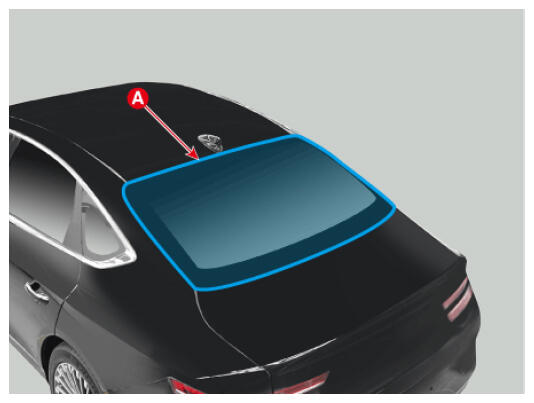

- Carefully remove the rear window glass (A).
